Surface metrology for precision engineering
As products get ever smaller, new geometrical characteristics that weren’t quite as important in larger dimensions are influencing product functionality. Surface properties are very important when it comes to improving functions such as high-precision motion, automatic assembly or components’ service lives. This is particularly true in precision engineering. Only the right application allows you to manufacture parts with an extended service life for precision mechanics. Last but not least, optical measuring technology is steadily gaining in importance in quality assurance operations for fine and microtechnology products due to its short measuring times, high resolution and contactless, non-intrusive measurement principle.
Applications
- FTP Flatness thickness parallelism

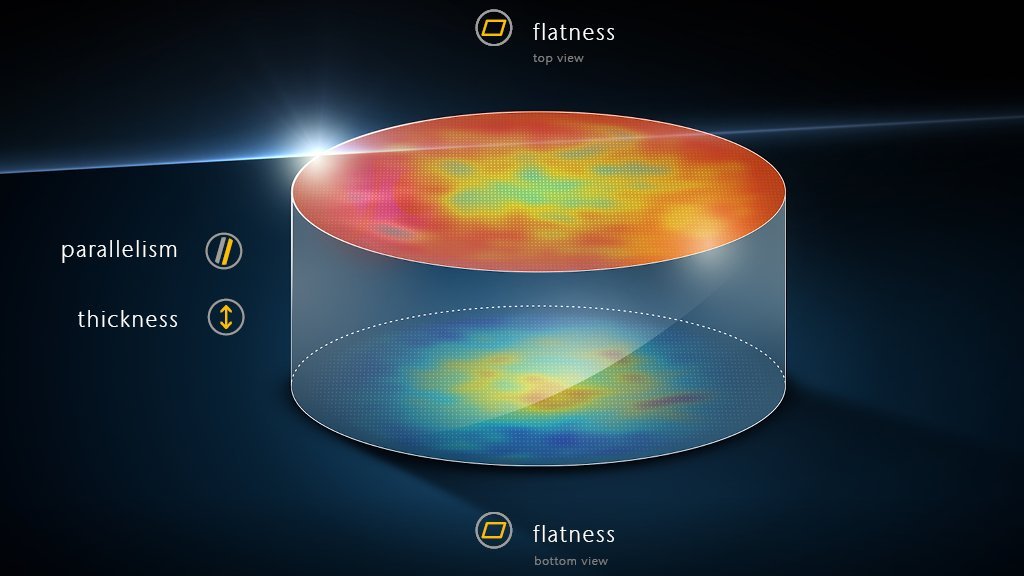

![Flatness Thickness Parallelism combined direct topography measurement]( "Flatness Thickness Parallelism combined direct topography measurement")
Flatness Thickness Parallelism combined direct topography measurement - Form parameters
![Surface form parameter evaluation on precision mechanics]( "Surface form parameter evaluation on precision mechanics")
Surface form parameter evaluation on precision mechanics - Material distribution
![Detailed asessment of material distribution]( "Detailed asessment of material distribution")
Detailed asessment of material distribution - Pass/fail analysis
![Multi-sample pass-fail analysis in manufacturing]( "Multi-sample pass-fail analysis in manufacturing")
Multi-sample pass-fail analysis in manufacturing - Precision mechanics

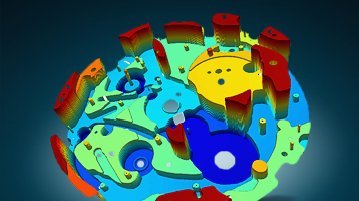

![Watchmaker industry using optical 3D profiles for quality control of watch precision mechanical parts]( "Watchmaker industry using optical 3D profiles for quality control of watch precision mechanical parts")
Watchmaker industry using optical 3D profiles for quality control of watch precision mechanical parts - Tribology
![Inspection of a coated surface without contact]( "Inspection of a coated surface without contact")
Inspection of a coated surface without contact - Surface roughness

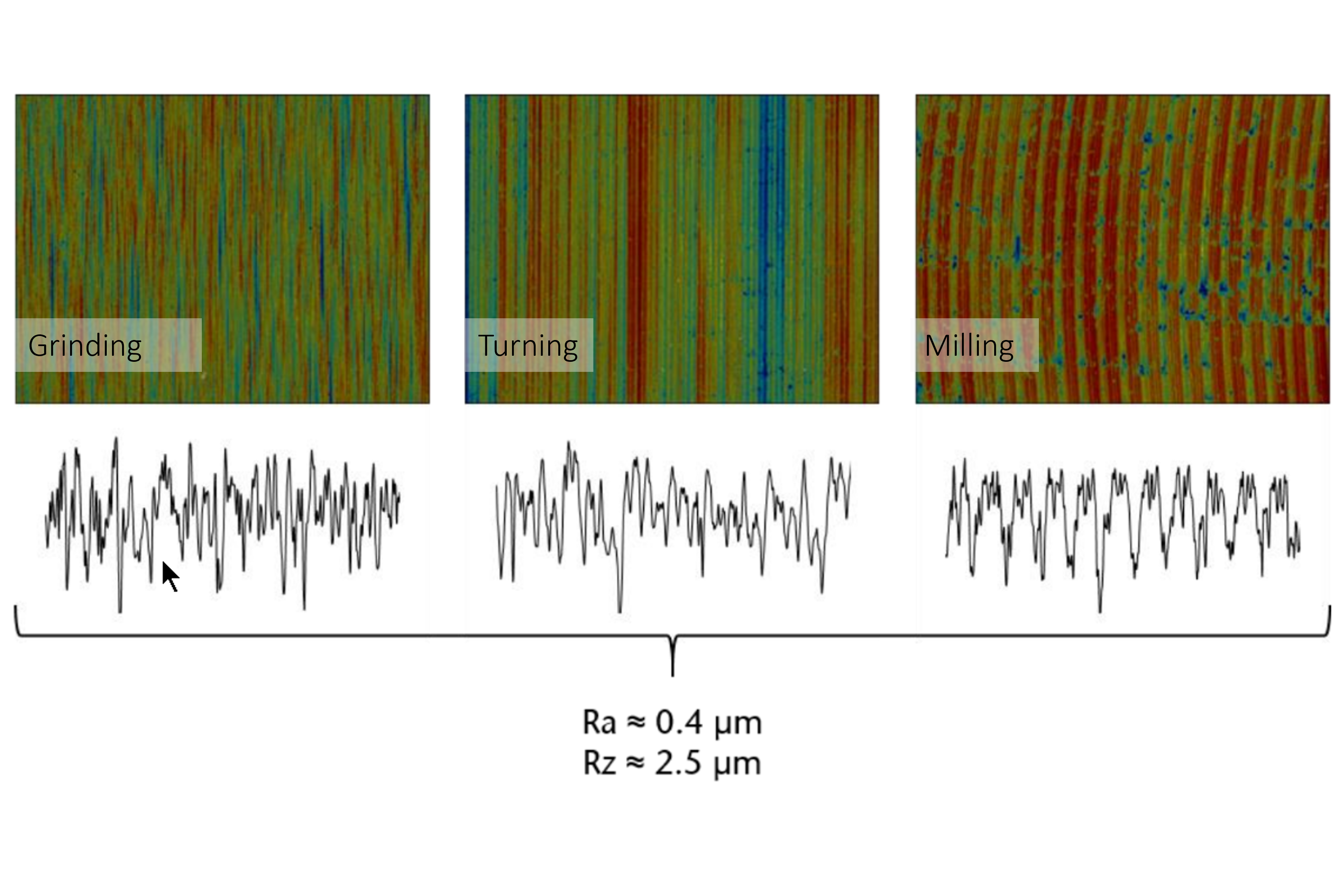

![Surface roughness masurement and measuring Ra, Rz roughness parameters]( "Surface roughness masurement and measuring Ra, Rz roughness parameters")
Surface roughness masurement and measuring Ra, Rz roughness parameters - Surface flatness
![Surface flatness measurement and parallellism as form parameter]( "Surface flatness measurement and parallellism as form parameter")
Surface flatness measurement and parallellism as form parameter - Surface step-height
![Measure step height, form parameter and 3D surface topography]( "Measure step height, form parameter and 3D surface topography")
Measure step height, form parameter and 3D surface topography - Layer thickness
![Optical and areal step edge test showing a 75.2 nm thick coating]( "Optical and areal step edge test showing a 75.2 nm thick coating")
Optical and areal step edge test showing a 75.2 nm thick coating
