3D characterization of microstructures, roughness & finish with sub nm-resolution

Micro.View® and Micro.View®+ are the next generation optical surface profilers. The Focus Finder and Focus Tracker greatly enhance the ease of use under all conditions, and, the CST Continuous Scanning Technology allows for using the entire travel range of up to 100 mm as extended measurement range. Distinguish and document defects and visual distortions with the latest color information imaging analysis. Quantify surface topography with sub-nanometer resolution and capture the finest details reliably.

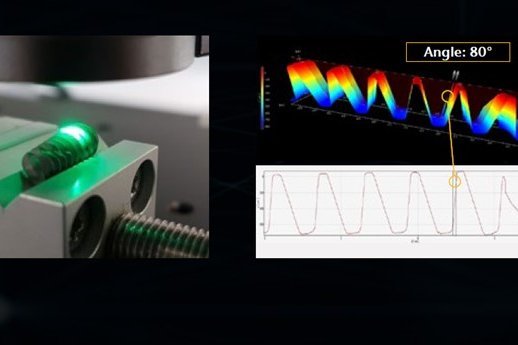

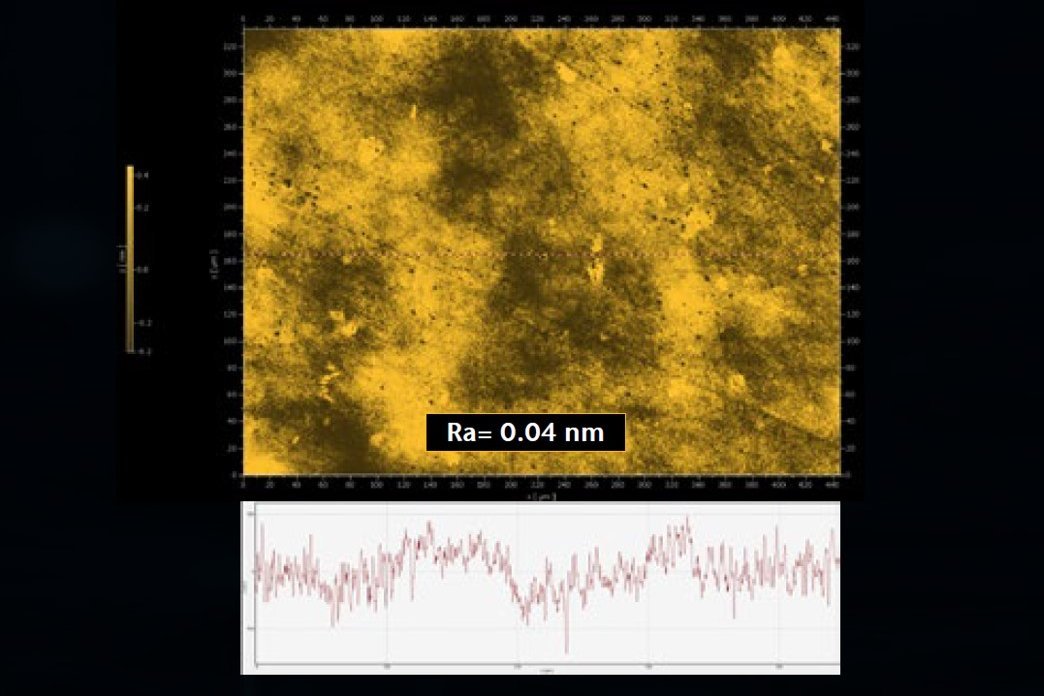

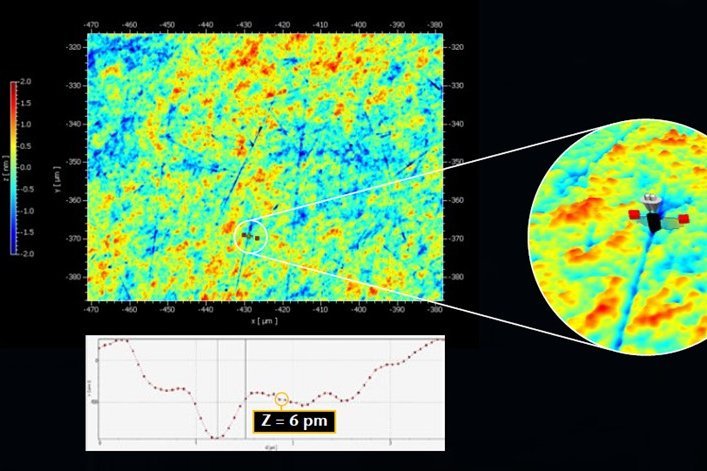

Characterize small details and microstructures with an areal 3D measurement, describe areal surface roughness Sa with sub-nm resolution and evaluate high slopes and steep angles with interferometric precision. Demo, free feasibility, specific evaluation parameters and custom configuration - contact us!

Dear visitor, in order to be able to watch our videos please accept the cookies. All information about the usage of cookies can be found in our privacy policy

Xperts inside! Next generation optical surface metrology

With nearly 60 years of experience in optical metrology, we are on the mission to push the limits of what is possible. Powerful surface metrology is not only hardware. Reliable quality inspections also depend on know-how, insights and experts. The new Micro.View® and Micro.View®+ are the next generation optical surface profilers from Polytec. Read more, how Focus Finder and Focus Tracker enhance the ease of use, how the CST Continuous Scanning Technology expands the vertical measurement range and how sub-nanometer resolution measurements capture the finest details.

Table-top optical profiler Micro.View®

TopMap Micro.View® is an easy to use and compact optical profiler. Combine exceptional performance and affordability with this powerful profilometer. Its extended 100 mm vertical measurement range combined with the innovative CST Continuous Scanning Technology enables topography anaylis at nm resolution with plenty of freedom for sample handling and positioning.This conventient table-top setup of an optical profiler features integrated electronics and a smart feature called Focus Finder for simplified, fast and efficient areal surface characterization for quality control.





Modular (automated) optical surface profiler Micro.View®+

TopMap Micro.View®+ represents the next generation of optical surface profilers more than any other measurement system within the TopMap line. Micro.View®+ delivers the most detailed topography analysis, detecting all surface details like roughness, texture and microstructure topography. Designed for modularity, this comprehensive surface profiler remains flexible for adaptions to production environements, to application-specific configurations and even semi or fully automated quality control processes. Combine 3D measurment data with color information for amazing visualizations and extended analysis including professional documentation of defects and artefacts. The built-in high-resolution camera delivers incredibly detailed 3D data visualization of all engineered surfaces. The encoded and motorized turret provides seamless switching of microscope objectives. The optical profiler Micro.View®+ also features the latest Focus Finder plus Focus Tracker, keeping the surface in optimum focus at all circumstances. The fully motorized sample positioning stages allow for stitching and automated inspections.



Measurement performance & capability figures

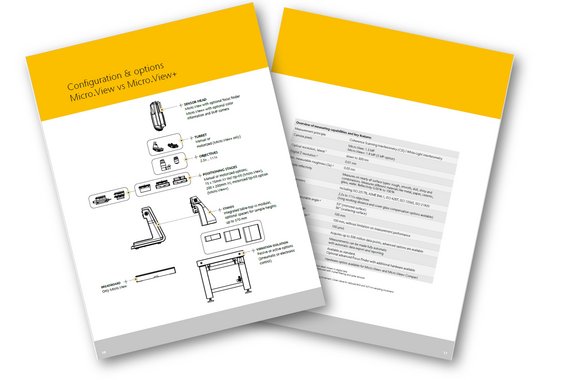

Micro.View and Micro.View+ are surface profilers based on the Coherence Scanning Technology (CSI), showing exceptional vertical resolution independent from the objective magnification. Continuous Scanning Technology (CST), sub-nm resolution, an up to 5 MP camera, a multitude of objectives from 2.5X (0.6X!) to 111X including long working distance and cover glass compensation options, a 100mm Z travel and vertical measuring range without performance limitations, as well as preset ISO parameters including ISO 25178, ASME B46.1, ISO 4287. ISO 13565, ISO 21920...

Test and experience this surface profiler, ask for a free demo or feasibility study!

Free guide on how to: Measurement System Analysis

Every measurement - whether with tactile or optical surface profilers - is subject to uncertainty. The measured values obtained are the basis for quality-controlled production and are thus a key component of quality assurance. However, the correctness of any conclusion drawn by a measurement depends not only on the suitability of the parameter, but also on how accurately and how reliably the measured values reflect the real conditions. Only if the measured value can be determined with a sufficiently small uncertainty in relation to the tolerance of the characteristic, the measurement process is suitable for the inspection task. This paper describes approaches and helpful capability figures of Measurement System Analysis (MSA).
