Reducing permanent load for increased lifetime
Failure is not an option – particularly in commercial aviation. In this industry, electronic components, printed circuit boards and sensors are exposed to continuous vibration loads. Testing printed circuit boards and structural elements in a way that simulates vibration and impact loads ensures continuous operating reliability. The non-contact vibration sensors from Polytec are ideal for dealing with this problem. The high-sensitivity laser technology reliably detects vibration-related weak points on printed circuit boards or individual components, right down to individual bond wires. Modal tests and order analyses quickly provide you with the right data for component, PCB, enclosure and attachment optimization.
Optical testing of electronics

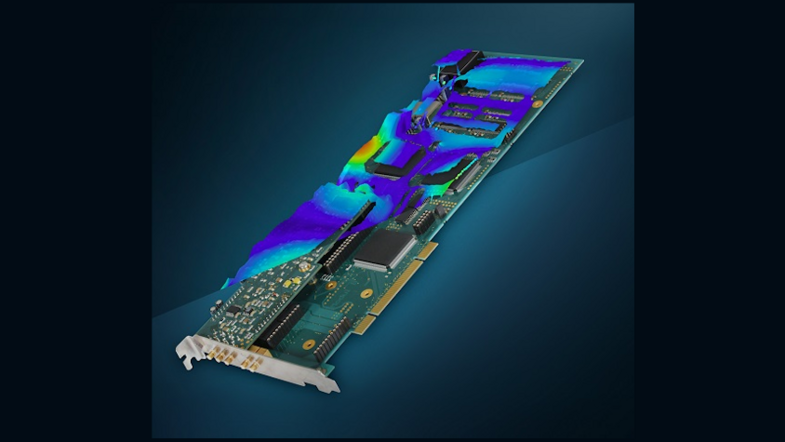

Polytec Scanning Vibrometers allow you to take the printed circuit board’s vibration modes into consideration at the layout stage. This means that heavy components such as capacitors, or processors with cooling elements, can easily be positioned in the deflection shape nodes. Continuous loading can be reduced by 80% as a result of this and the service life can be increased accordingly. Visualization by Polytec is a critical resource for this.
Related products
PSV-500 Scanning Vibrometer
The PSV Scanning Vibrometer measures vibrations on an entire surface in a non-contact and laser precise way. Its visible HeNe laser provides outstanding SNR on well-reflecting sample surfaces and is ideal for small samples and under water. This flexible measurement platform allows researchers and developers to master the most challenging vibration measurement tasks with ease – from DC to 25 MHz. Detect and visualize operational deflection shapes and Eigenmodes with this cutting-edge laser Doppler vibrometer. Upgrade or expand it to a full 3D system once your application-specific demands grow.
PSV-500-3D Scanning Vibrometer
The PSV-500-3D Scanning Vibrometer measures 3D dynamics in research and product development in a reliable and precise way. Its visible HeNe laser provides outstanding SNR on well-reflecting sample surfaces and is ideal for small samples and under water. The deflection shapes and Eigenmodes detected help you with everything from NVH, acoustic and structurally dynamic issues to ultrasonic analyses, FEM validation and non-destructive testing from DC to 25 MHz.
RoboVib
By combining a 3D scanning vibrometer and an industrial robot, RoboVib® forms an automated test station for measuring everything from complex components to complete vehicle bodies. Reduce testing time and expenses as well as time to market significantly in experimental modal analysis. Conduct comprehensive 360° testing of a vehicle body, for example, within only one-two days and overnight instead of weeks of preparation with conventional test setups.
