Reinventing full-field optical vibration mapping
Polytec QTec Scanning Vibrometers are state-of-the-art for fast noise and vibration measurements in research and development. They determine operational deflection shapes and Eigenmodes for NVH, acoustics, structural dynamics, ultrasonics, FEM validation and NDT.

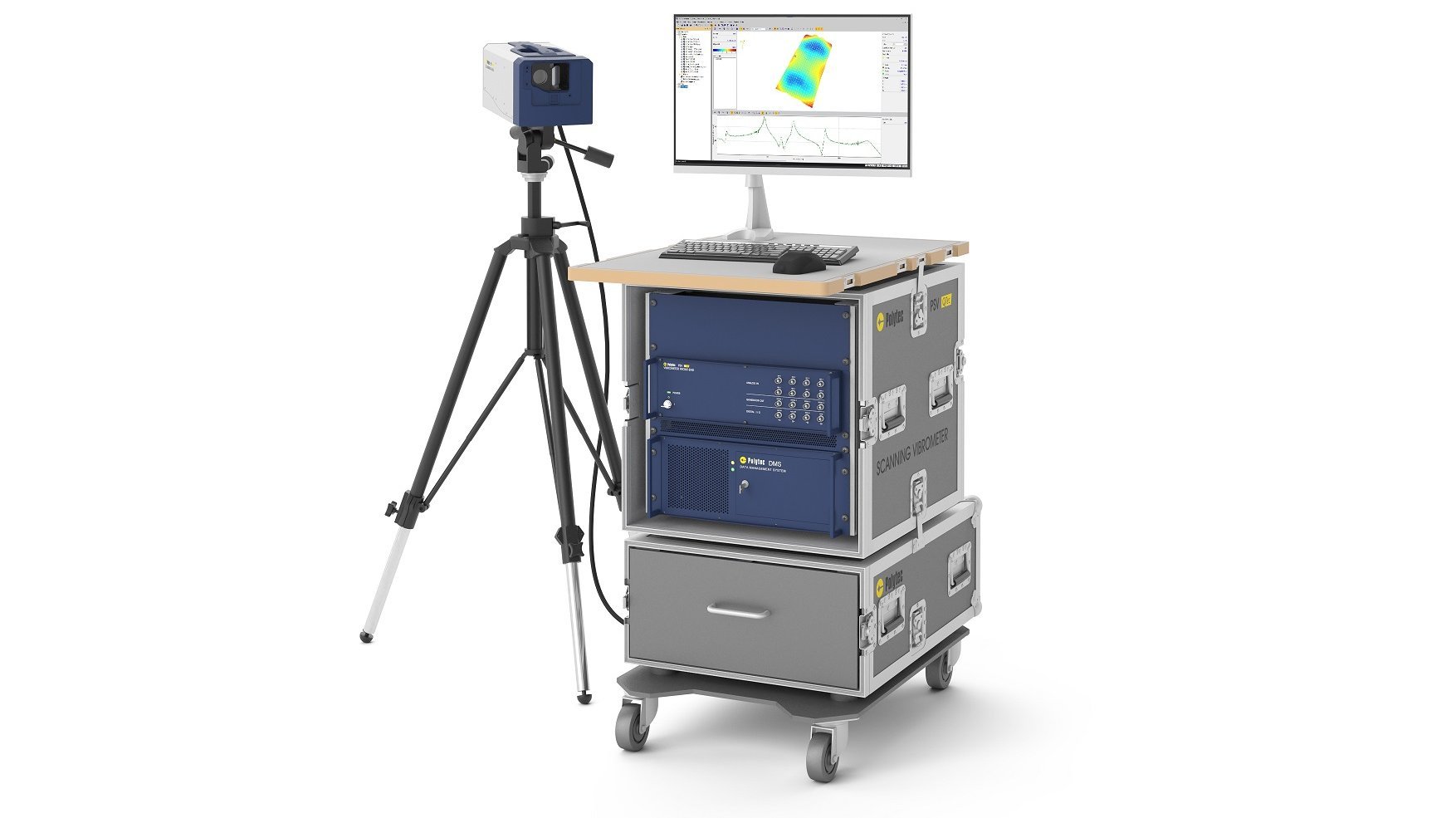

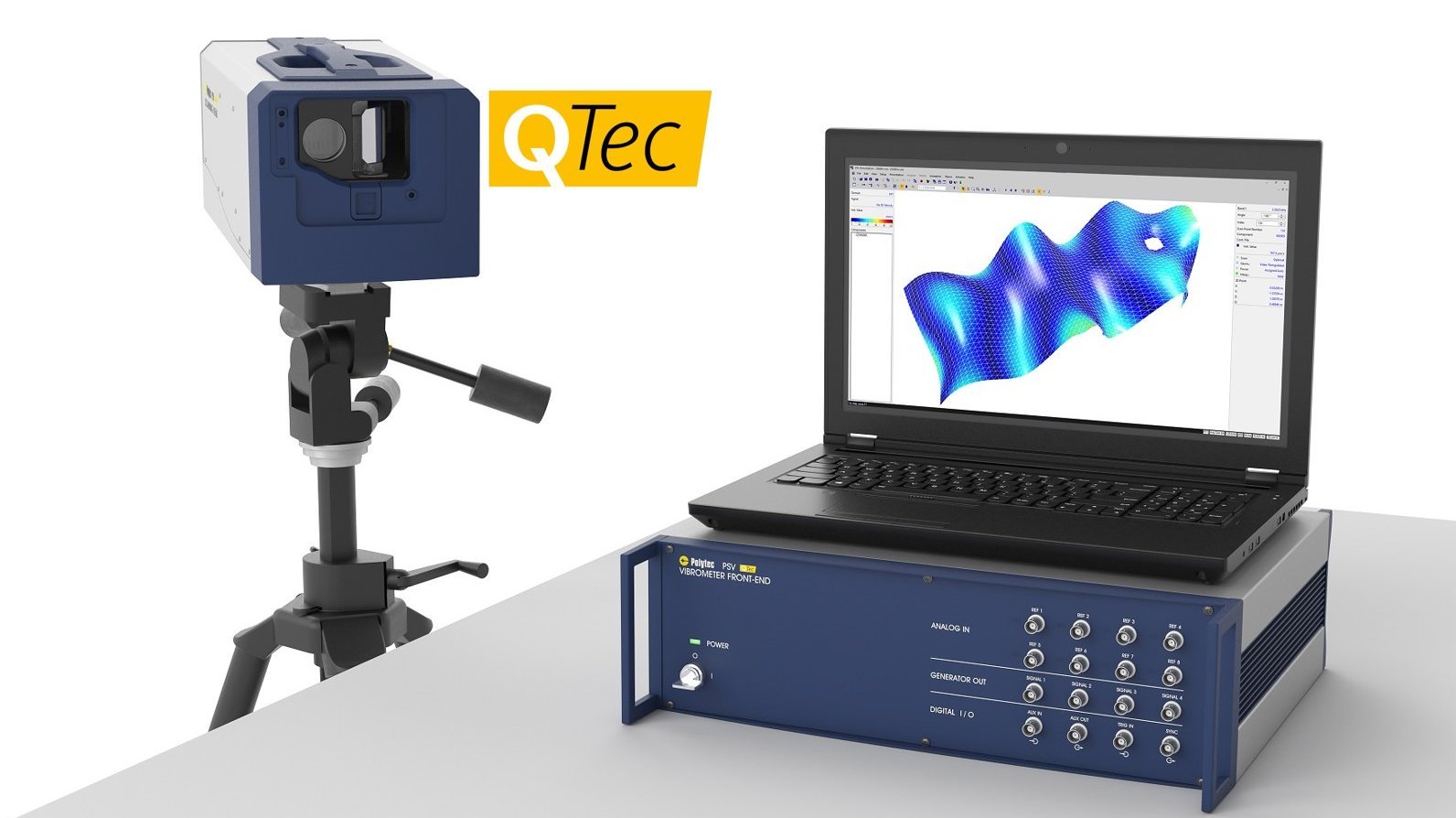

PSV QTec Scanning Vibrometers are available as compact and portable laptop version or as a powerful rack-type workstation, as 1D or 3D system. Choose between several models that cover frequency ranges up to 25 MHz or upgrade to a PSV QTec 3D vibration measurement system for comprehensive analysis of both out-of-plane and in-plane motions of vibrating structures.
Highlights
- Non-contact, full-field vibration measurement with FEM-like spatial resolution
- Best SNR on engineered surfaces
- Up to 10x faster on engineered surfaces
- Professional CAE interfaces for model validation
- Scanner interface enabling tracking and Continuous Scanning Laser Doppler Vibrometry (CSLDV)
- Advanced geometry handling for meaningful result presentation

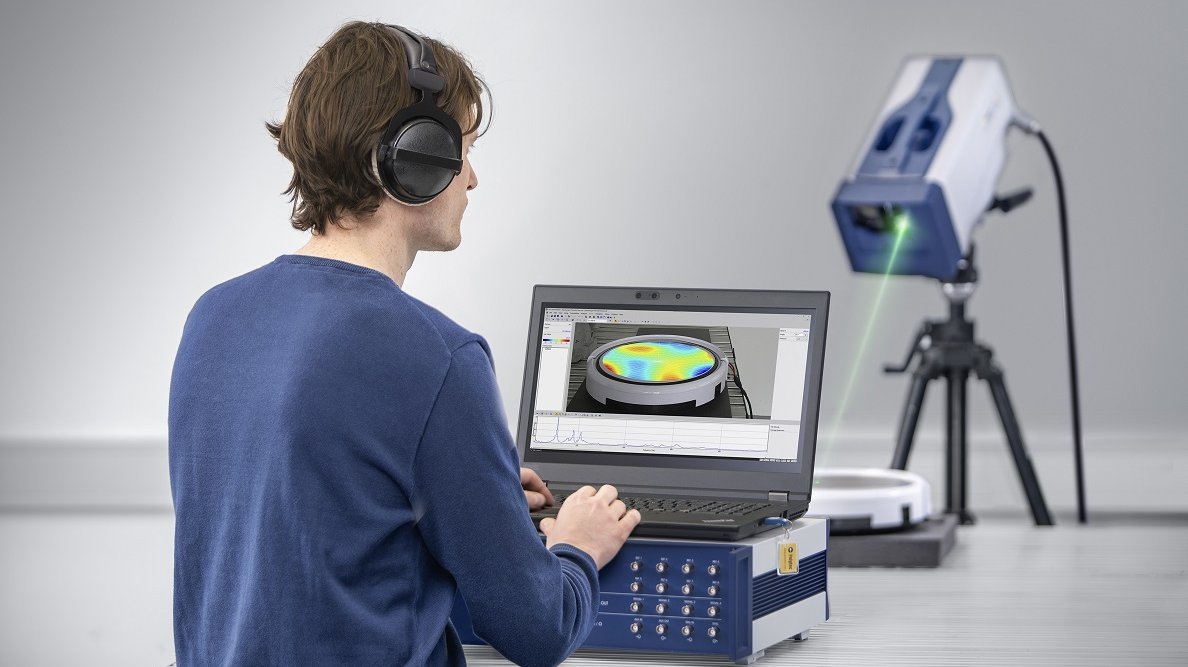

Modal analysis featuring MIMO excitation and 8 input channels
- Expandable to 3D system
Faster results with QTec® multi-path interferometry
The patented QTec® multi-path interferometer technology boosts the signal quality of infrared laser vibrometer (SWIR) decisively. It provides highest optical sensitivity for high-fidelity measurements on all surfaces, which significantly reduces testing time – even on dark, biological, rotating or moving objects. This safe laser technology is perfect for challenging applications also on distant targets. QTec® makes vibration measurements faster, easier and more reliable than ever – for the most robust, unambiguous results.
Upgrade to PSV QTec 3D
Whenever your demands grow, you may upgrade to a 3D Scanning Vibrometer system. PSV QTec 3D Scanning Vibrometers are state-of-the-art for noise and vibration measurement in research and development. Using 3 independent scanning heads they deliver the full information on all vibrational directions. PSV QTec 3D determines operational deflection shapes and Eigenmodes for NVH, acoustics, structural dynamics, ultrasonics, and FEM validation. The high frequency version up to 25 MHz extends the application range to non-destructive evaluation (NDE) research.
Every PSV QTec integrates perfectly into the CAE world providing interfaces to 3D geometries, modal analysis, and automation. With the right accessories, you can measure even the smallest components, localize and trigger on noise, master even complex geometry and measurement setups and measure in tough test bench conditions or wind tunnels.
QTec® multipath interferometry for fast and efficient vibration measurement
Accessories and components
Optical Accessories
PSV-G-600 Geometry Scan Unit
Integrated laser distance sensor to measure the sample geometry.

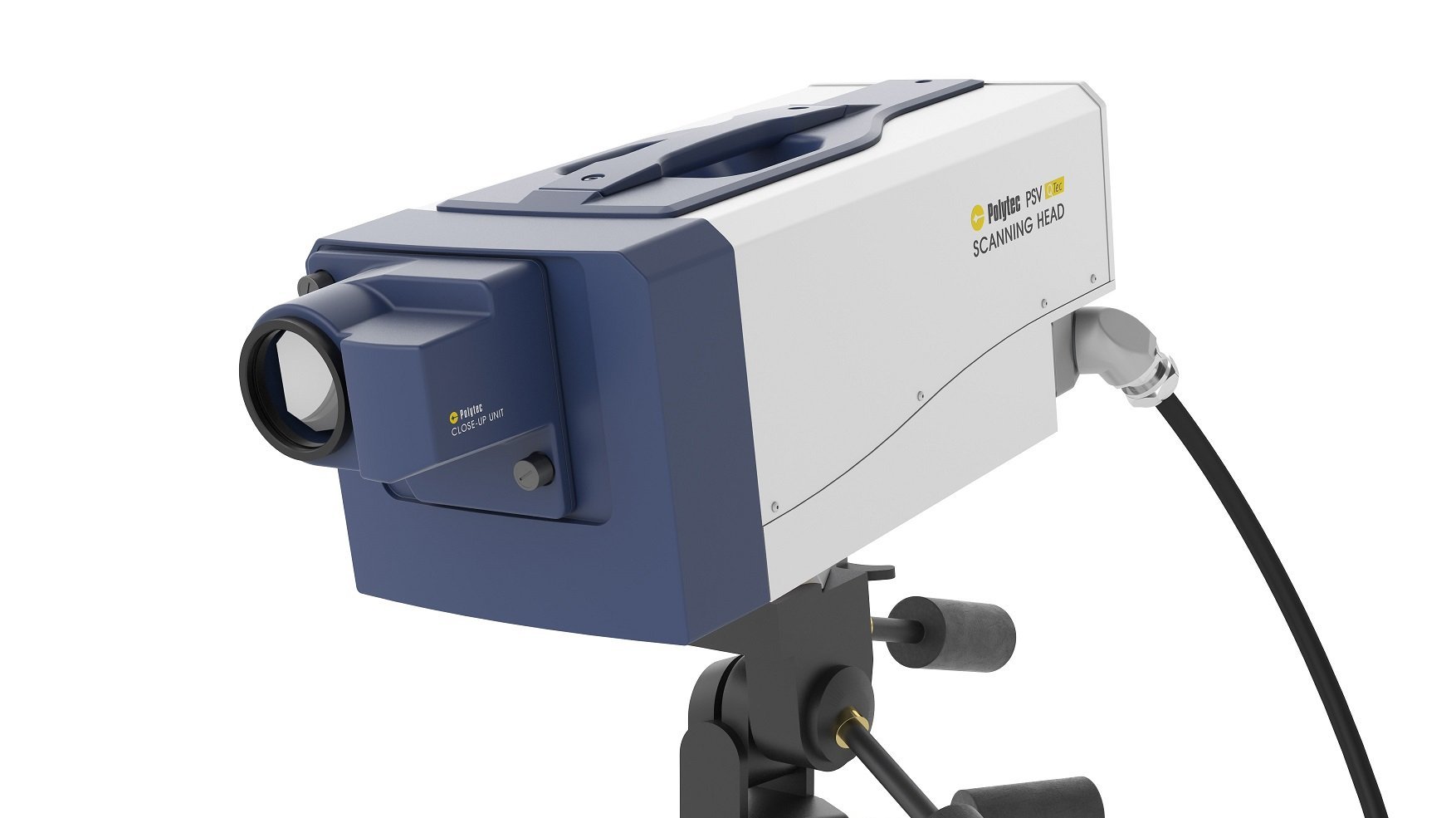

PSV-A-610-I Close-up Unit
For close-up measurements, particularly on small parts. Includes a set of close-up lenses for the video camera. Special PSV-A-CL-xxx Micro Scan Lenses for small shiny parts available.
PSV-A-CL-xxx Micro Scan Lenses
Optimized beam path for measurements of very small parts or mirror-like surfaces. Requires Close-up Unit.
PSV-A-RLight Ring Light
Fiber optic ring light for illumination of small test objects. Requires PSV-A-410 Close-up Unit.
PSV-A-535 Front Window
Protects the scanning mechanism against dust, wind and acoustic excitation at high dB levels.
A-MIR-xxxx Mirror Sets
Polytec's mirror sets contain different sizes of mirrors to assist in the set-up of your measurement.
Tripods, Test Stands, Positioning Stages
VIB-A-T02 Tripod with Pan/Tilt Head
PSV-A-T18 Vertical Test Stand
Motorized positioning of PSV scanning head for small part testing.
PSV-A-T51 Motorized Tripod
Convenient motorized support for 3 PSV scanning heads.
Miscellaneous
PSV-A-015/016 System Cabinet
Ergonomic mobile workstation with storage for all parts and accessories.
External Scanner Control
Allows for an additional control of the scanning mirrors by external voltage signals.
VIB-A-HEAD Headphones
Headphone with noise limiter to listen to the vibrometer signal.
PSV-A-430 Acoustic Gate Unit
Activates the gate input if a noise exceeds a certain threshold. Suitable for event trigger applications such as brake squeal measurements.
Scalable Automatic Modal Hammer SAM
Excitation of sample for experimental modal tests with repeatable force level. Broadly configurable and avoids double hits reliably.
A-RET-xxxx Retro-Reflective Supplies
Selection of sprays, tape, sheets and micro glass beads for improvement of signal to noise ratio when measuring uncooperative surfaces.
