Post-processing software suite
With its clear user interface, PolyWave turns even beginners into experts. It is optimized for seamless processing of vibration measurement data and provides modules for experimental and operational modal analysis, order analysis and an optional automatic report generator.
Service tool Polytec Update
Download and install our service tool Polytec Update to receive the latest software.
The easy way to vibration test data evaluation – PolyWave Post-Processing Suite
Highlights
- AI supported extraction of modal parameters
- Geometry assignment for model validation of EMA and FEA data
- Become an expert with automatic parametrization.
- One GUI covering all evaluations – ODS, EMA, OMA, order
- Handle large and complex data with ease
- Comprehensive measurement reports in seconds for solid decision-making
Advancing the analysis of vibration test data
The seamless post-processing with PolyWave makes your studies with Polytec laser Doppler vibrometers more efficient than ever (especially for scanning vibrometers like PSV or MSA). PolyWave offers a choice of application specific modules:
- EMA for experimental modal analysis
- OMA for operational modal analysis which adds to EMA
- ODS for evaluation of full-field data in time, order and frequency domain
- ORDER for order analysis
- REPORT for automated test report generation (enhances all modules)
- Pre-Processing for filtering and optimization
- Result Viewer for visual and MAC comparison between test and simulation
Related products

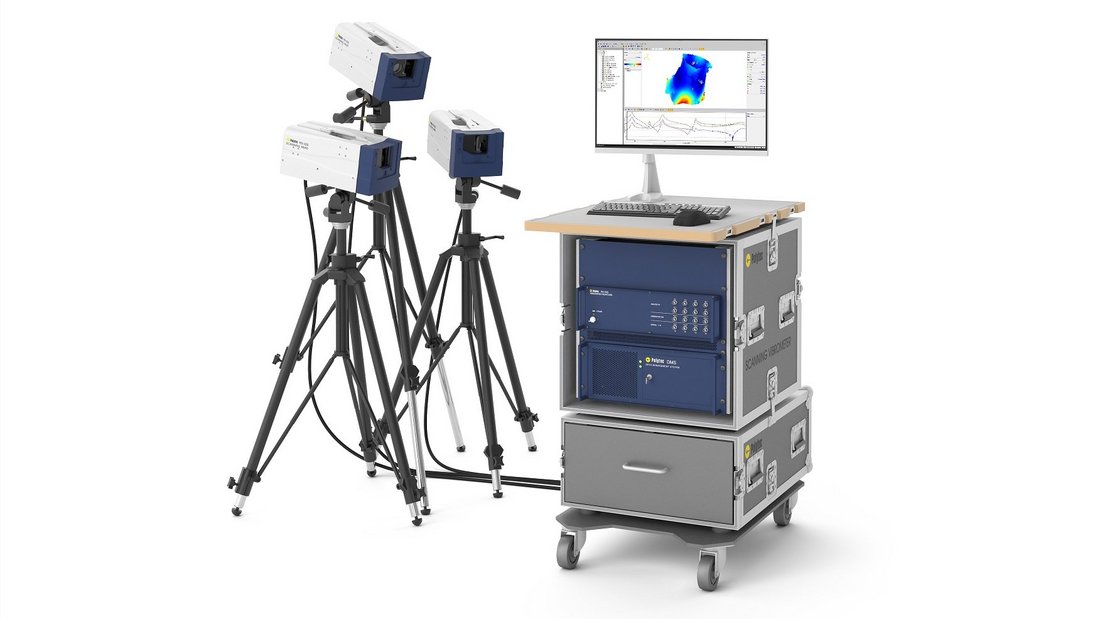

PSV-500-3D Scanning Vibrometer
The PSV-500-3D Scanning Vibrometer measures 3D dynamics in research and product development in a reliable and precise way. Its visible HeNe laser provides outstanding SNR on well-reflecting sample surfaces and is ideal for small samples and under water. The deflection shapes and Eigenmodes detected help you with everything from NVH, acoustic and structurally dynamic issues to ultrasonic analyses, FEM validation and non-destructive testing from DC to 25 MHz.
PSV-500 Scanning Vibrometer
The PSV Scanning Vibrometer measures vibrations on an entire surface in a non-contact and laser precise way. Its visible HeNe laser provides outstanding SNR on well-reflecting sample surfaces and is ideal for small samples and under water. This flexible measurement platform allows researchers and developers to master the most challenging vibration measurement tasks with ease – from DC to 25 MHz. Detect and visualize operational deflection shapes and Eigenmodes with this cutting-edge laser Doppler vibrometer. Upgrade or expand it to a full 3D system once your application-specific demands grow.
MSA-100-3D Micro System Analyzer
The 3D Micro System Analyzer records vibration components in all three spatial directions at once. The optical measurement system enables high-resolution 3D vibration analysis from DC up to 25 MHz with amplitude resolutions in the sub-picometer range, for both in-plane and out-of-plane vibration components.
RoboVib
By combining a 3D scanning vibrometer and an industrial robot, RoboVib® offers you an automated measuring station for measuring everything from complex components to complete vehicle bodies. Both the amount of time required and the sources of error – especially in experimental modal analysis – are reduced significantly. So you can thoroughly test a vehicle body, for example, in just one to two days, whereas you would previously have needed weeks to even prepare for the test itself.
Measurement service & rentals
Our engineering services cover a wide range of applications, either onsite or in our laboratories. Ask for our PolyXperts, rent cutting edge laser measurement equipment and benefit from individual support for your projects. Our experienced application engineers are pleased to help, measure and test for you. For comprehensive studies, rent the RoboVib® Structural Test Station
