Measuring microstructures, testing microtechnology
Miniaturizing functional components enables numerous applications and innovations, whether in consumer electronics, automotive, wearables or medical technology. Micro-electromechanical systems (MEMS) or microoptics place high demands regarding sophisticated testing, presenting new challenges to respective measurement technology and testing tools. Complex microstructures require a comprehensive analysis, ideally including areal inspection with high resolution (µm to nm range), revealing insights regarding quality and functionality.
Polytec optical measurement solutions allow characterizing both the areal topography, form and structural details as well as testing the dynamic motion and behaviour of MEMS and microsystems.
How do you inspect topography, finish or microstructures?
Static topography measurement of microstructures

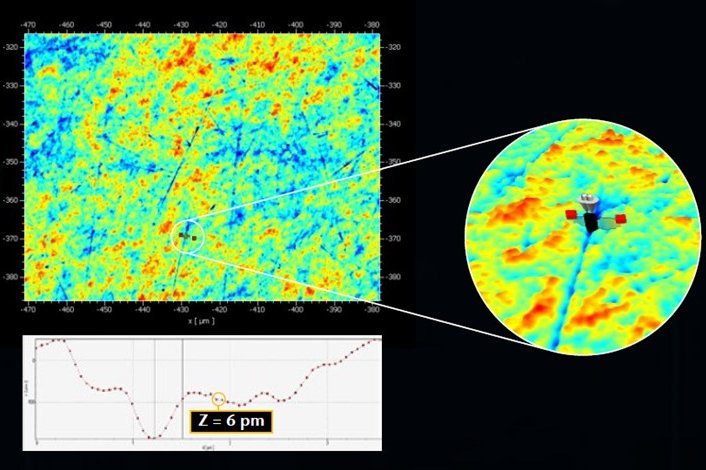

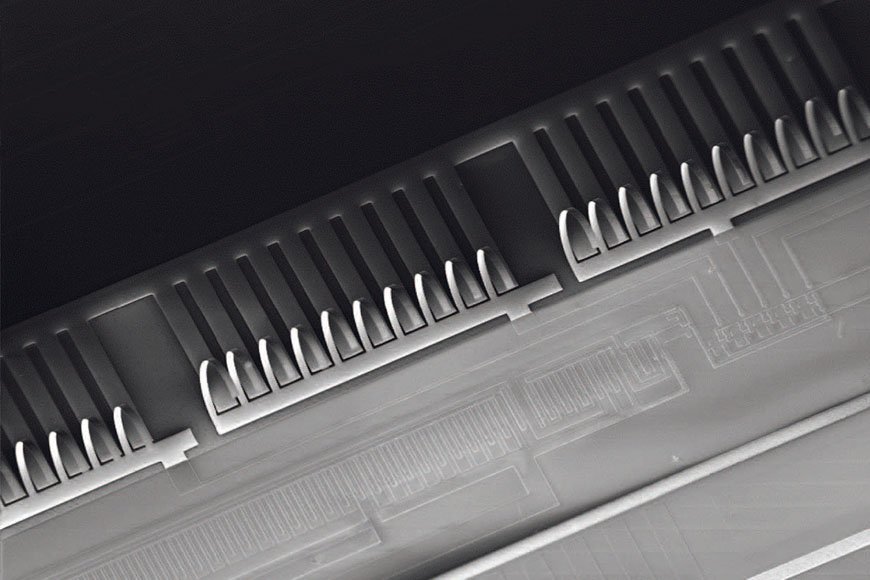

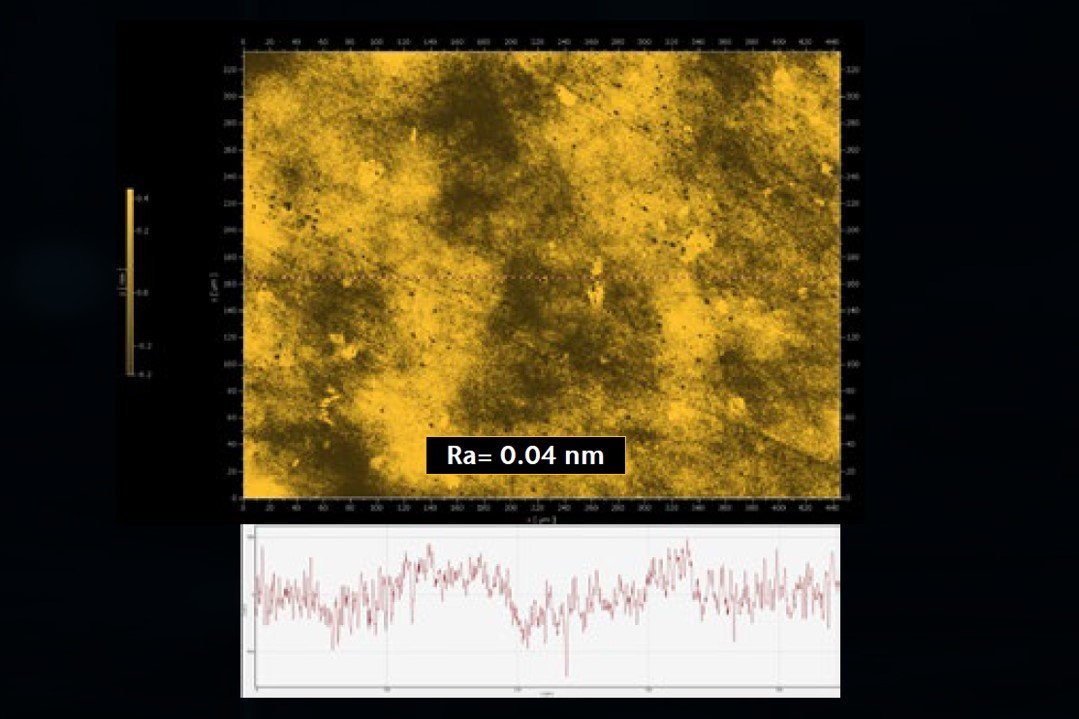

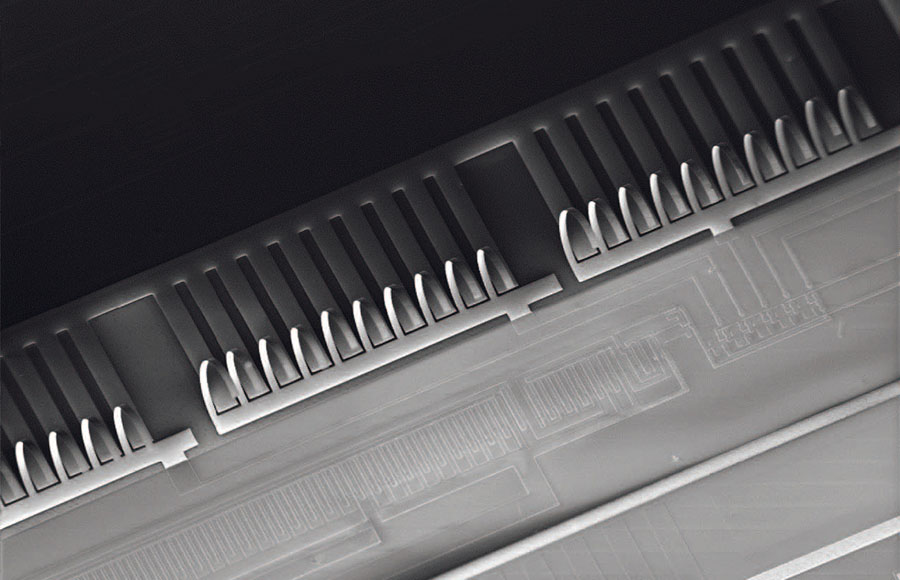

Microstructures and MEMS as micro-electromechanical systems must comply with tight tolerances in order to guarantee functionality and the life-time. Physical influences on the microscopic structures should be avoided. Therefore, optical non-contact surface characterization is key to inspecting microtechnology in a non-destructive and non-invasive way, evaluating surface parameters like form and roughness. Polytec optical metrology solutions provide non-reactive and reproducible measurements on microstructures and microsystems.

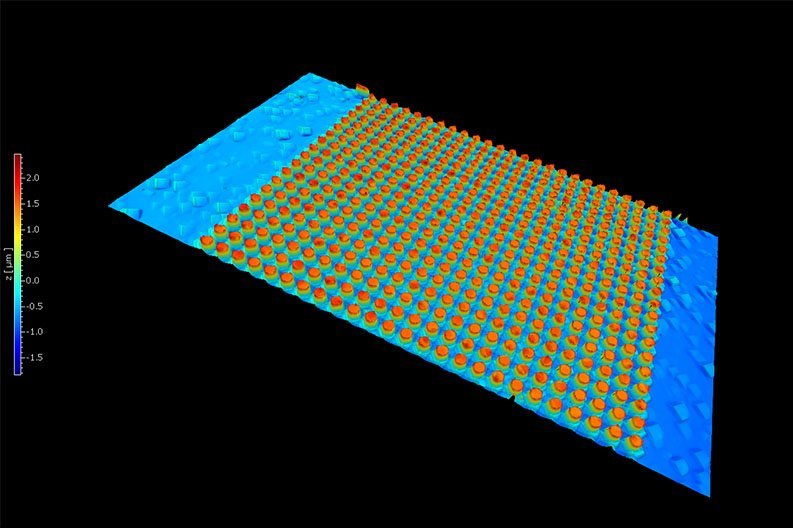

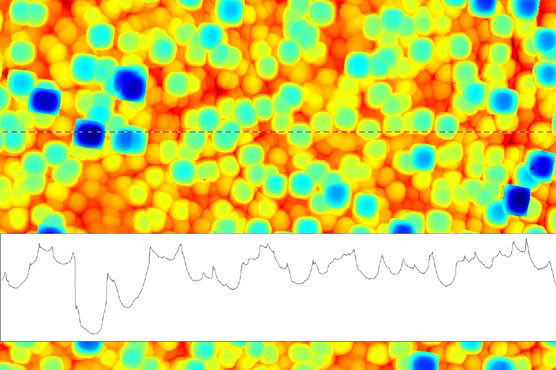

TopMap 3D surface metrology characterizes microstructures based on coherence scanning interferometry, scanning height data and collecting millions of measurement data on an entire surface within a few seconds regardless of the materials - whether matt or rough texture after CNC machine processing or smooth and reflective like wafers. Smart surface scanning technology facilitates measurements on varying reflective areas of a test specimen. Typical static topography measurements of microstructures are used on microsensors and actuators, investigations on structured metal sheets, sealing surfaces or machined surfaces, where proper lubrication must be secured, or research and development of biomedical samples for cosmetics and medical technology.
We measure your MEMS and microstructures and analyze them with you!
Measuring MEMS dynamics

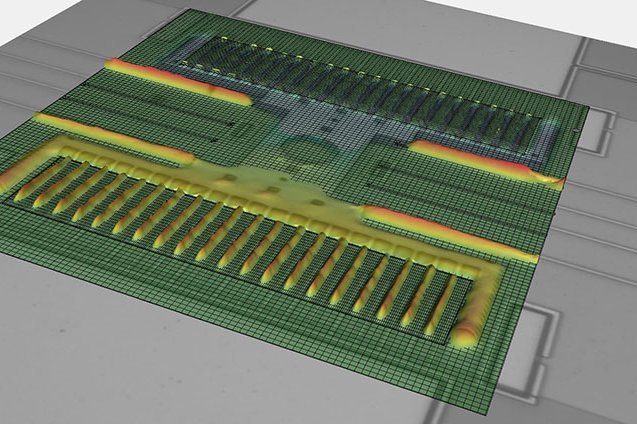

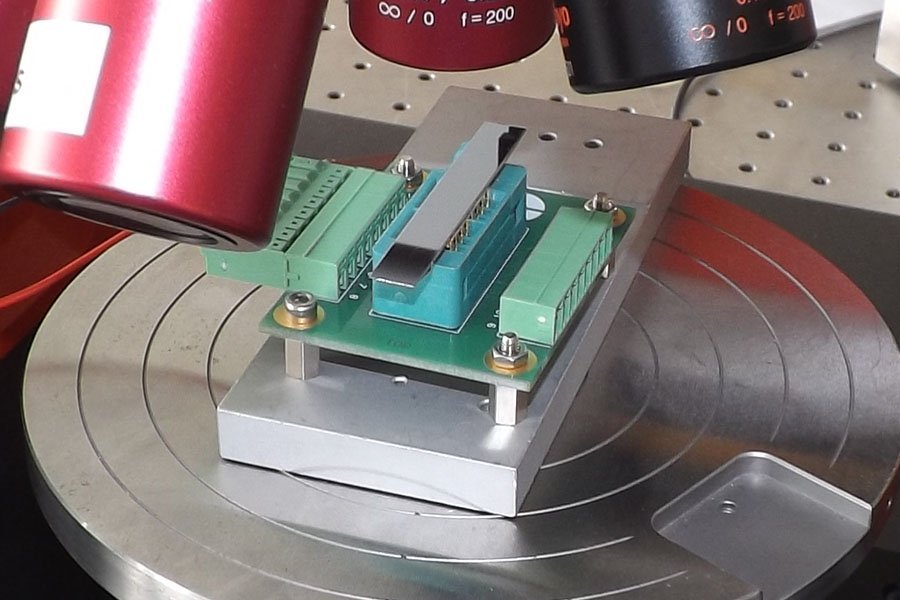

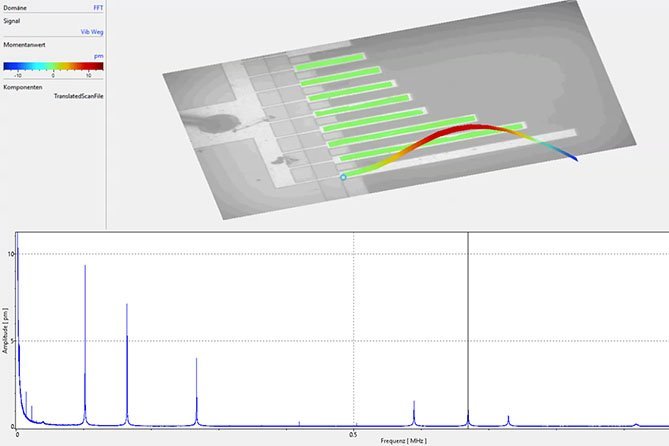

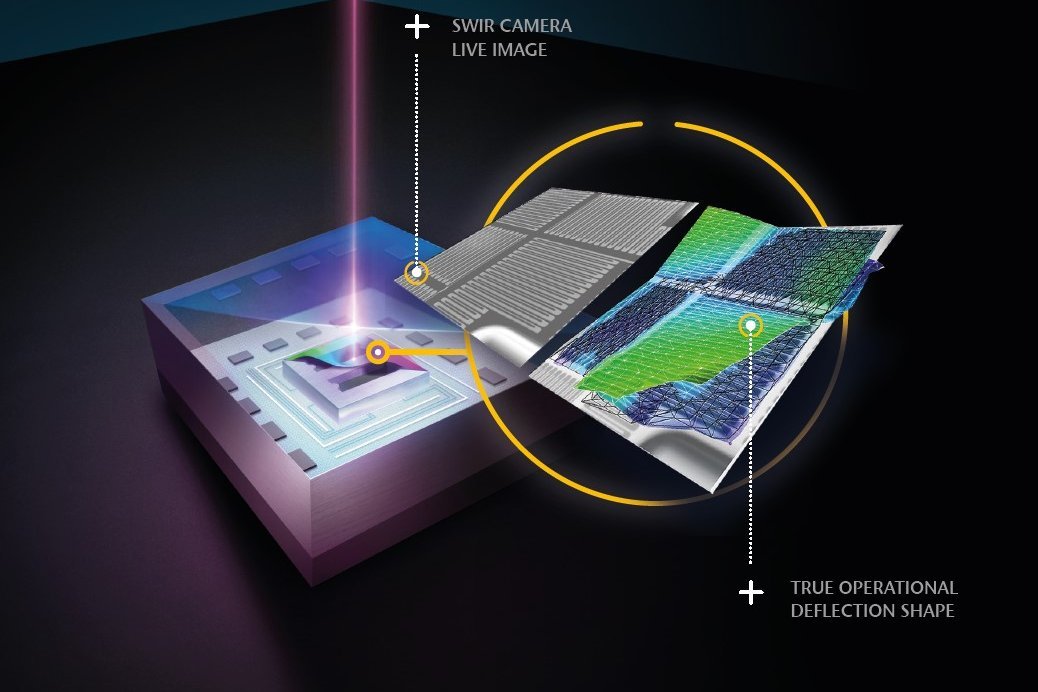

Active micro-electromechanical components such as MEMS actuators and MEMS sensors demand sophisticated optical measurement technology, since electrical characterization alone is not sufficient. The line of MSA Micro System Analyzers from Polytec is designed for the thourough characterization of the dynamic behaviour of microsystems. These MEMS testing systems enable the precisely assesment of both the high-resolution surface topography and the dynamic component like motion. The dynamic measurement uses laser Doppler vibrometry, allowing for broadband measurements up to the GHz range, visualizing mode shapes of components with a high amplitude resolution and true phase, often used for model validation. The patented IRIS technology even captures MEMS dynamics through intact Si encapsulation, enabling to test MEMS in final state. Find out more here!
Tactile vs optical measurement of microstructures
Tactile surface measurement technologies face limits when it comes to microstructure analysis since the complex structural details are difficult to be transferred over an entire surface using a 2D profile line or it can become quite time-consuming. A reference line is used here, often referred to as roughness profile, often becoming the basis for further evaluation. Tactile measurements with stylus tips can leave marks on the surface and are subject to wear, which can affect repeatability over time. A non-invasive optical testing method shows particular advantages for precision surfaces in mechanical engineering, offers reproducible measurements, does not lead to NOK parts and proves to be faster and more cost-effective for full-areal measurements or 100% inspections in production or research.
We measure your samples and show what's possible in free feasibility studies!
Related products

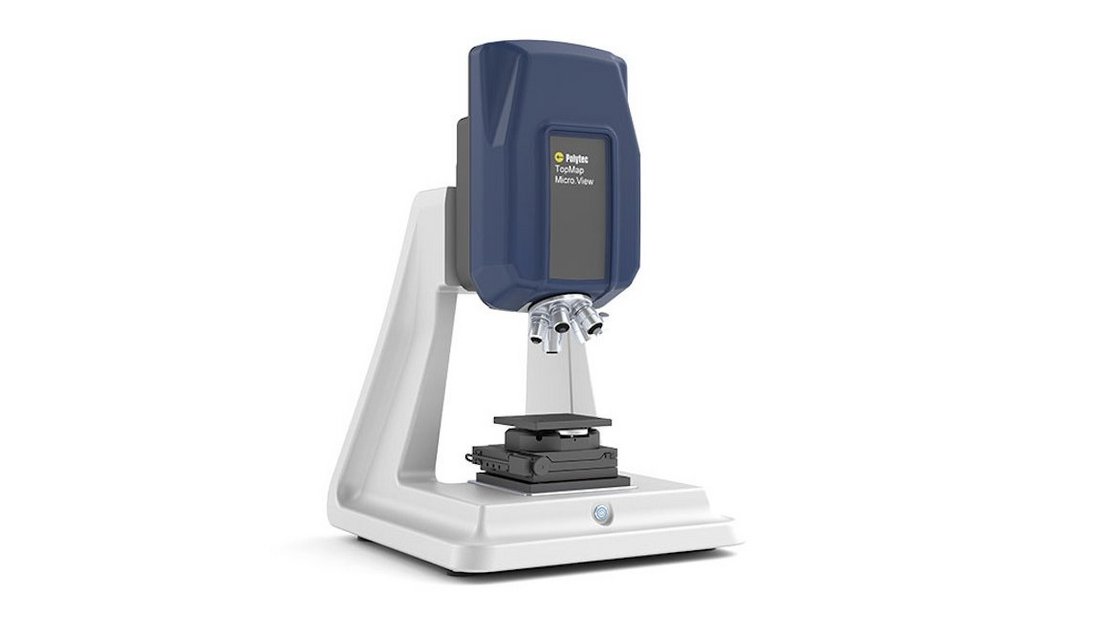

TopMap Micro.View
TopMap Micro.View® is an easy to use and compact optical profiler. Choose Micro.View® as the cost-effective quality control solution for surface analysis of precision-engineering, for inspecting roughness, microstructures and more surface details.
TopMap Micro.View+

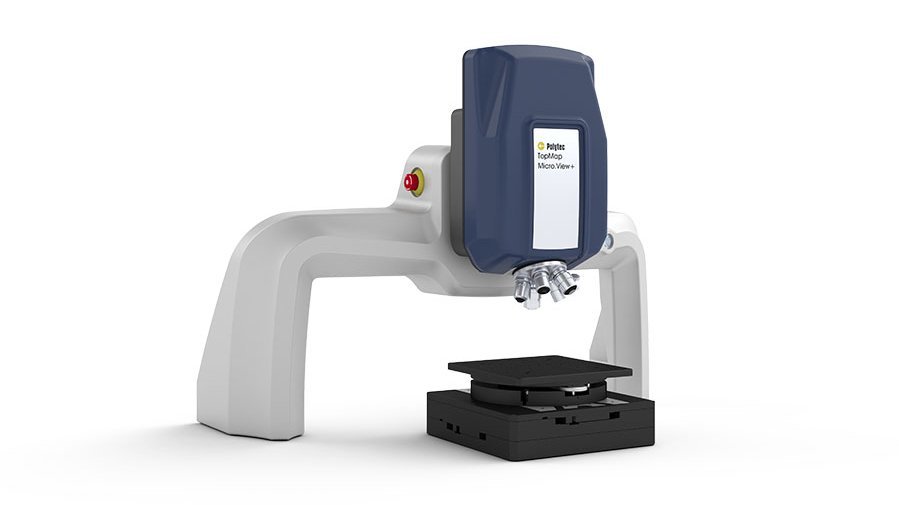

TopMap Micro.View®+ is the next generation optical surface profiler in a modular design to reliably measure the most challenging analysis tasks regarding surface finish and microstructures with utmost precision. Focus Finder and Focus Tracker assist in keeping samples focused at all times, with fully motorized positioning units ready for automation. Find out more!
MSA-600 Micro System Analyzer
The all-in-one optical measurement solution for static and dynamic 3D characterization of MEMS and microstructures- now for up to 8 GHz! The MSA-600 enhances microsystem development and quality inspections - also allowing testing on wafer-level when integrated into commercially available probe stations.

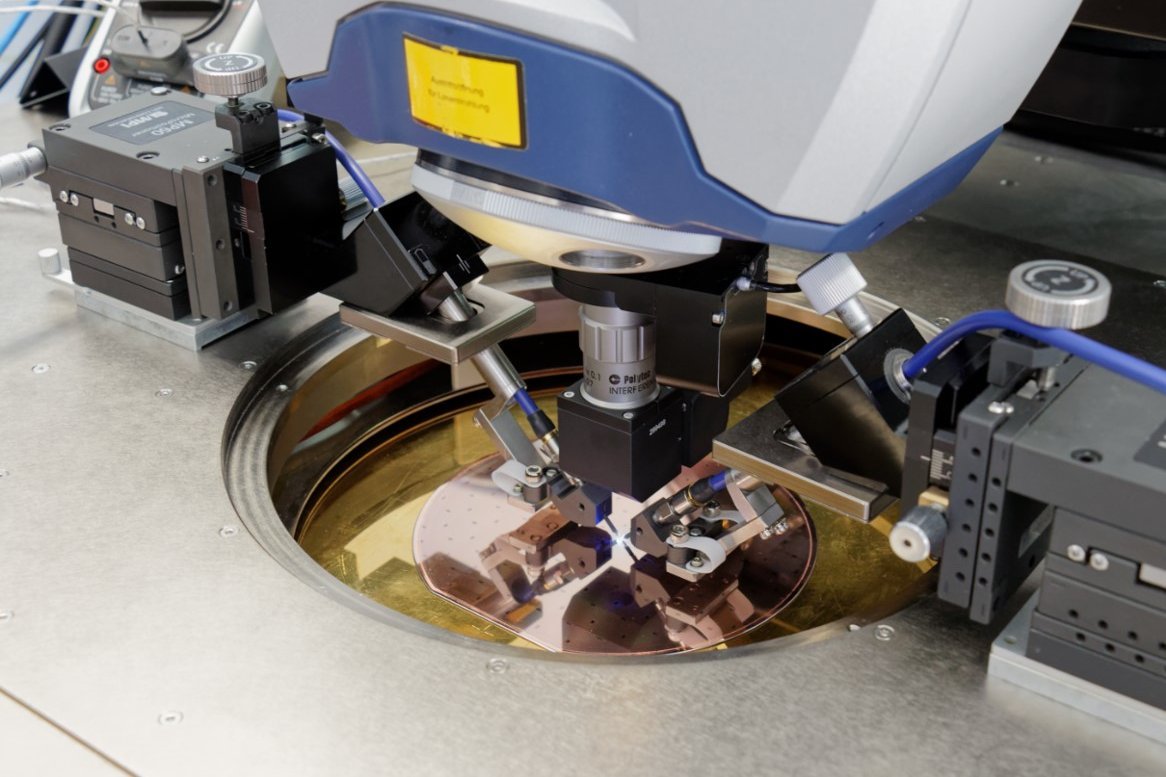

MSA-650 IRIS Micro System Analyzer

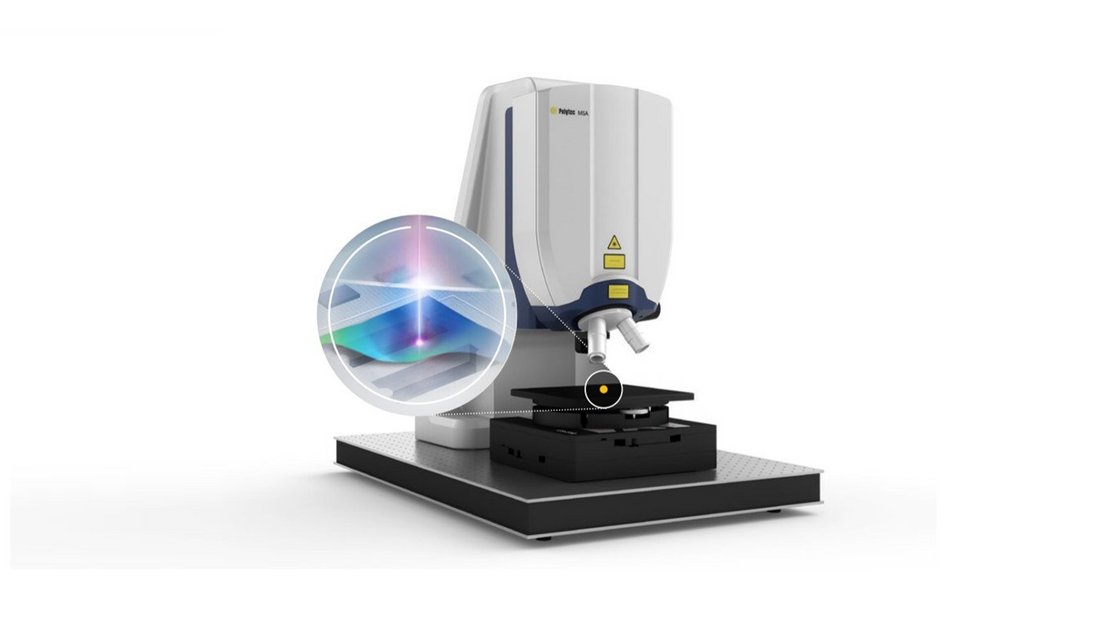

The innovative and patented MSA-650 IRIS Micro System Analyzer with IR capability allows for measuring true MEMS dynamics up to 25 MHz by characterizing both in-plane and out-of-plane motions through silicon encapsulation without contact, without need for preparing nor decapping the device.

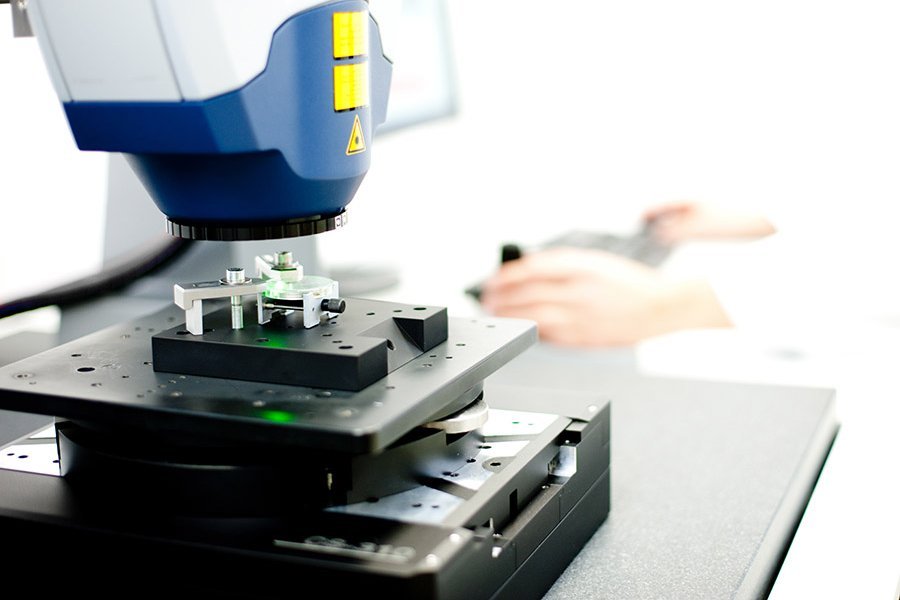

MSA-100-3D Micro System Analyzer
The 3D Micro System Analyzer records vibration components in all three spatial directions at once. The optical measurement system enables high-resolution 3D vibration analysis from DC up to 25 MHz with amplitude resolutions in the sub-picometer range, for both in-plane and out-of-plane vibration components.
MSA-060 Micro System Analyzer

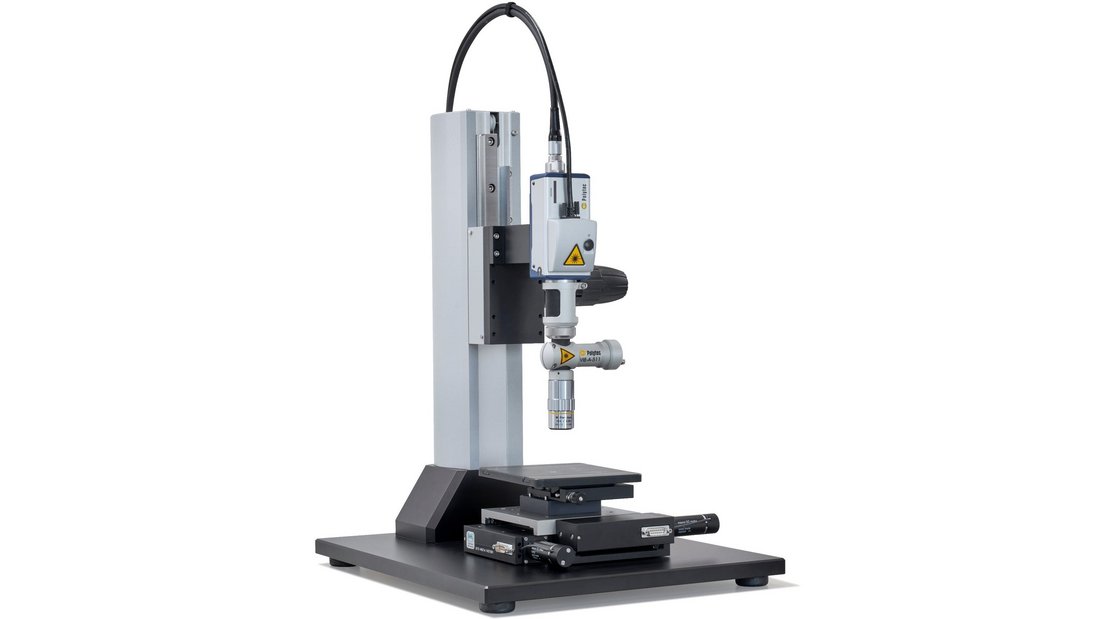

Use the MSA-060 for entering the world of microsystem analysis. Record and visualize vibrations and dynamics of small components and microsystems with laser precision over an entire surface from DC to 24 MHz. Micro System Analyzers use measurement lasers, revealing the true dynamics of small components in a completely non-contact and non-invasive way.
Related applications
- Lab-on-a-chip

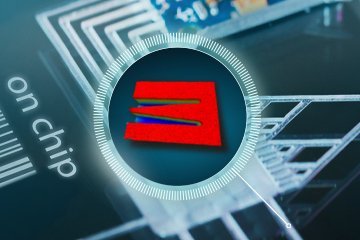

![Lab-on-a-chip (LoC) 3D topography and form analysis]( "Lab-on-a-chip (LoC) 3D topography and form analysis")
Lab-on-a-chip (LoC) 3D topography and form analysis - MEMS pressure sensor

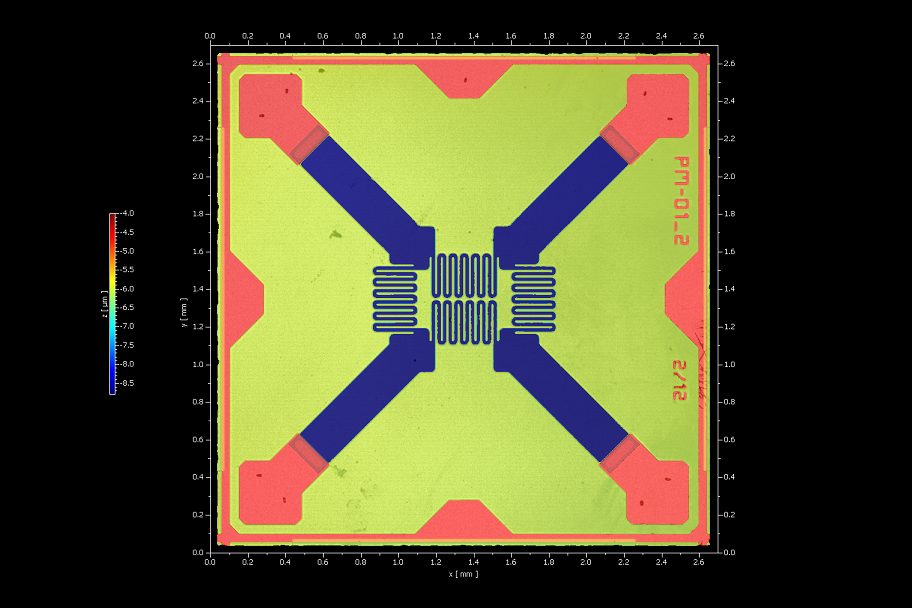

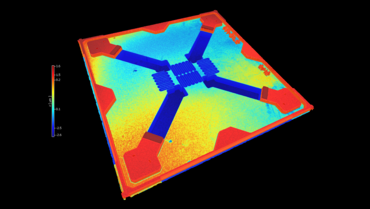

![2D/3D profile of MEMS pressure sensor with 2.5x magnification and microscope measurement (courtesy: CIS)]( "2D/3D profile of MEMS pressure sensor with 2.5x magnification and microscope measurement (courtesy: CIS)")
2D/3D profile of MEMS pressure sensor with 2.5x magnification and microscope measurement. CiS Forschungsinstitut für Mikrosensorik GmbH - Ball grid array (BGA)

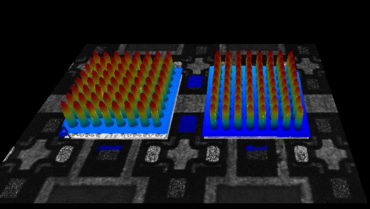

![bump measurement on a ball grid array (BGA) as 3D profile]( "bump measurement on a ball grid array (BGA) as 3D profile")
bump measurement on a ball grid array (BGA) as 3D profile - Die bonding

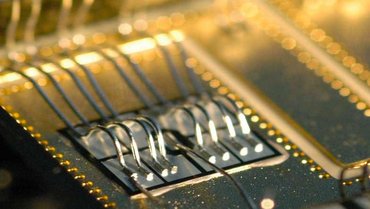

![Elektrisch leitendes Kleben in der Elektronik]()
- Flexible electronics
![Flexible Elektronik gekonnt elektrisch leitend kleben]()
- Wafer-level

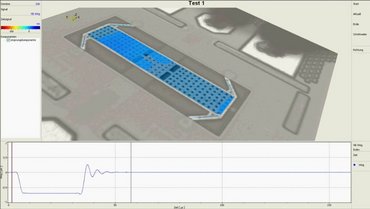

![Deflection shape after modal testing microacoustic device on wafer level]( "Deflection shape after modal testing microacoustic device on wafer level")
Deflection shape after modal testing microacoustic device on wafer level - cMUTs and pMUTs
![Laser Doppler vibrometer measurements of several leaking CMUT cells visualizing dynamic displacement]( "Laser Doppler vibrometer measurement of leaking CMUT transducer cells")

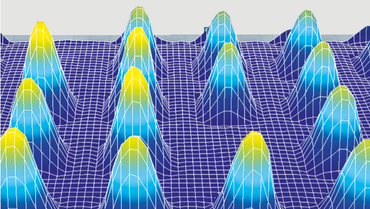

Laser Doppler vibrometer measurements of several leaking CMUT cells, visible with a much lower dynamic displacement when operating the device - SAWs and BAWs
![Dynamic measurement of a SAW surface acoustic wave filter]( "Dynamic measurement of a SAW surface acoustic wave filter")

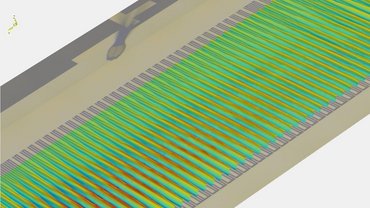

Dynamic measurement of a SAW surface acoustic wave filter
