NVH testing

NVH testing without contact and mass-loading

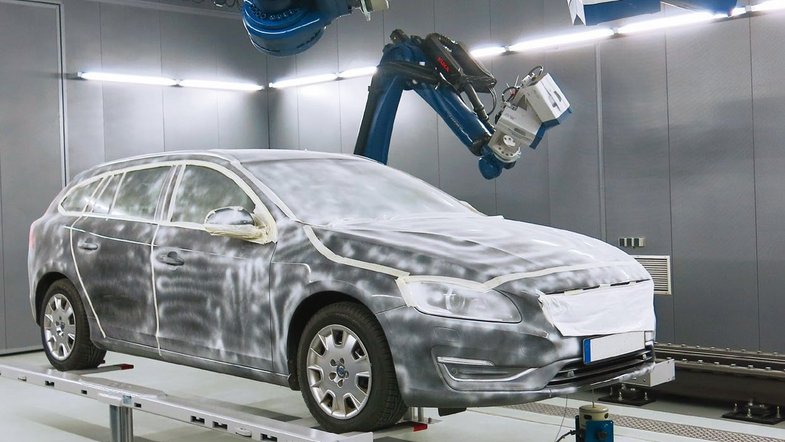

Droning, humming, squeaking and rattling are typical acoustic problems found in vehicles – and particularly in lightweight construction. They are a source of irritation to end customers and consequently need to be eliminated. The term NVH (noise, vibration and harshness) is an umbrella term used to refer to all those measures that enhance acoustic comfort for drivers and passengers alike. Developing quiet, low-vibration products is a joint simulation and testing task. Polytec’s Scanning Vibrometers allow you to unveil sources of sound radiation quantitatively and with high spatial resolution. Inverse panel contribution measurements and qualification of damping materials (sound package) are made a great deal easier with the automatic scanning process.

For precise and reliable examination of the source of sound and vibration, use PSV Scanning Vibrometers from Polytec and identify the structure-borne sound transmission paths and the causative deflection shape. The 3D visualization of the operational deflection shapes helps the NVH engineer to quickly come up with ideas to solve the problem – even just before production starts.

NVH acoustics testing using the e-line method

Squeak and rattle (S&R) refers to a sub group of NVH acoustics, testing for undesirable squeaking and rattling noises as one important factor for customer satisfaction. S&R is a non-linear phenomenon that is heavily dependent on the relative displacements of neighboring components.

In NVH acoustics testing, the E-line method focuses on calculating and evaluating the relative displacement between two automotive parts, which is the main cause for S&R, chafing and abrasive wear. NVH sensor solutions from Polytec help perform NVH measurements in the time domain and in a local coordinate system along the E-line, thus capturing the true displacement in the rattle direction and in the squeak plane.

NVH in electric mobility (EV) – vibration measurement & analysis

Wheel hub motors show benefits in packaging, but also bring in new challenges in terms of NVH due to their installation position. A dedicated group of the Otto von Guericke University in Magdeburg used optical vibration measurement technology for analyzing the vibrations behavior of external rotor electric motors in order to optimize the acoustics of wheel hub motors. Read more about the research on close-to-wheel electric drives in this article. Please sign in for downloading the full paper.
