Automated experimental modal analysis

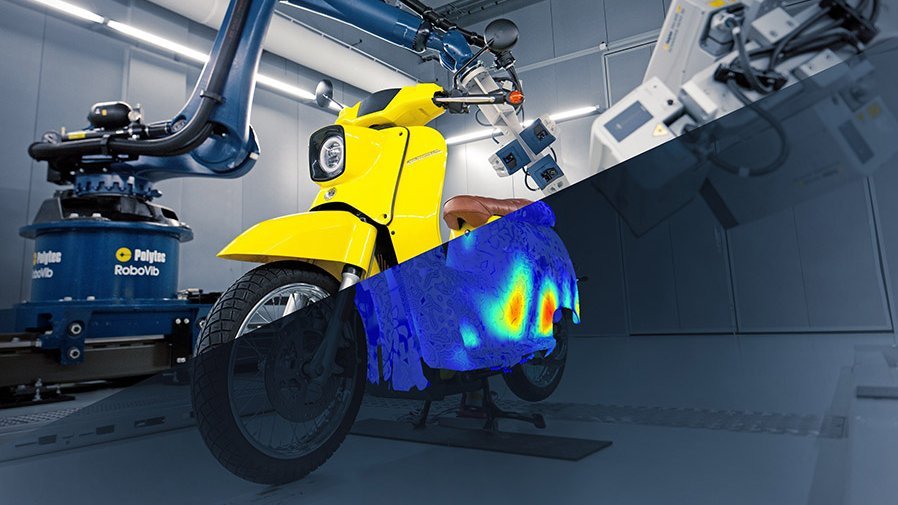

The RoboVib® Structural Test Station combines a 3D Scanning Vibrometer with an industrial robot – to create a productive vibration analysis solution. The automated measuring station automatically tests everything from complex components to entire vehicle bodies. Both the amount of time required and the sources of error in experimental modal analysis are reduced significantly. So you can therefore thoroughly test a vehicle body, for example, in just one to two days, whereas you would previously have needed weeks to even prepare for the test itself.
Highlights
- Non-contact, automatic laser vibration measurement
- Full-field measurement with high spatial resolution
- Saves time compared with to a conventional modal test
- Greater productivity due to fully automatic measurement – even overnight
- Reduced test preparation requirements due to reusable test programs
- Errors are avoided due to CAD and FE data being used for test definition purposes
Carry out fully automatic modal tests overnight
RoboVib® makes your modal tests far easier compared to using conventional tactile sensors:
- No definition and marking of spots as a sub-quantity of the FE mesh
- Eliminates the need for dummy masses due to non-intrusive laser technology
- Eliminates the need to wire all the sensors
- Incorrect measurements due to defective or mixed-up cables are a thing of the past
- Sensor position is not measured in the coordinates system (Euler angle)
- Sensor dismantling and calibration are a thing of the past.
RoboVib® offers you other valuable benefits with its clever concept:
- High spatial resolution for correlation with the acoustic FE model
- Results are directly returned to the nodal points in the FE mesh’s coordinates system – avoiding interpolation and time-consuming post-processing
- Re-use of the individual measuring programs
- Incorporate RoboVib® results into any development landscape with direct interfaces to common modal analysis programs such as ME’scope, FEMtools™ or VMap™ and universal file export.
Let's dance
Experimental modal analysis of lightweight structures
Related products

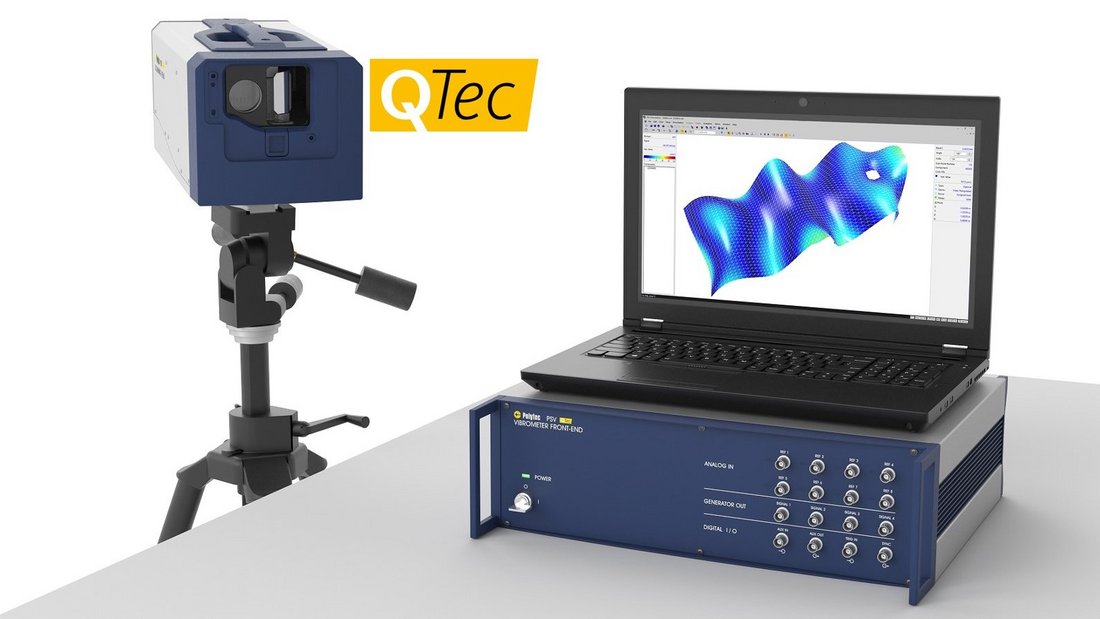

PSV QTec Scanning Vibrometer
PSV QTec Scanning Vibrometers take full-field vibration mapping to the next level with unrivalled optical sensitivity! Their innovative, patented QTec® technology uses multi-path interferometry based on infrared (SWIR) laser granting high-fidelity measurements on all surfaces from DC to 25 MHz. PSV QTec significantly reduce testing time - especially on dark, biological, rotating or moving objects, determining operational deflection shapes and Eigenmodes for NVH, acoustics, structural dynamics, ultrasonics, FEM validation and NDT.
PSV-500-3D Scanning Vibrometer
The PSV-500-3D Scanning Vibrometer measures 3D dynamics in research and product development in a reliable and precise way. Its visible HeNe laser provides outstanding SNR on well-reflecting sample surfaces and is ideal for small samples and under water. The deflection shapes and Eigenmodes detected help you with everything from NVH, acoustic and structurally dynamic issues to ultrasonic analyses, FEM validation and non-destructive testing from DC to 25 MHz.
PSV-500 Scanning Vibrometer
The PSV Scanning Vibrometer measures vibrations on an entire surface in a non-contact and laser precise way. Its visible HeNe laser provides outstanding SNR on well-reflecting sample surfaces and is ideal for small samples and under water. This flexible measurement platform allows researchers and developers to master the most challenging vibration measurement tasks with ease – from DC to 25 MHz. Detect and visualize operational deflection shapes and Eigenmodes with this cutting-edge laser Doppler vibrometer. Upgrade or expand it to a full 3D system once your application-specific demands grow.

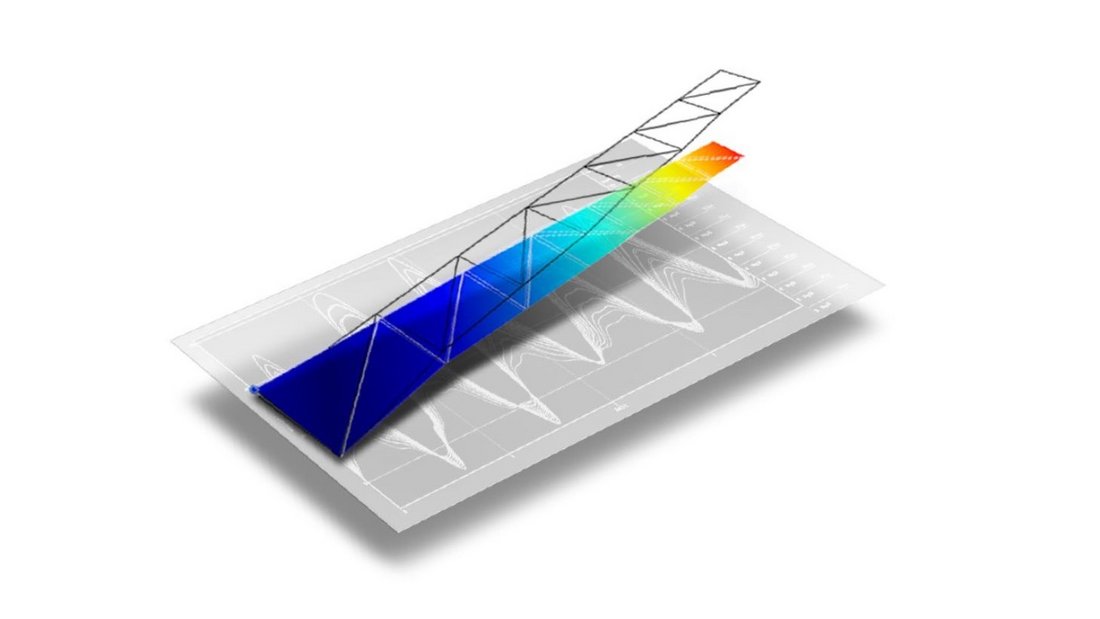

MDE Multipoint Data Evaluation
For vibration testing of transient and non-stationary events, the MDE Multipoint Data Evaluation is a software solution for laser Doppler vibrometers (LDV). MDE offers a wide range of tools for data evaluation, deflection shape analysis in time and frequency and output filters for modal analysis.
Scalable Automatic Modal Hammer SAM
When it comes to experimental modal analysis, the unrivalled repeatability of the Scalable Automatic Modal Hammer SAM perfectly matches scanning laser Doppler vibrometers.
Measurement service & rentals
Our engineering services cover a wide range of applications, either onsite or in our laboratories. Ask for our PolyXperts, rent cutting edge laser measurement equipment and benefit from individual support for your projects. Our experienced application engineers are pleased to help, measure and test for you. For comprehensive studies, rent the RoboVib® Structural Test Station.

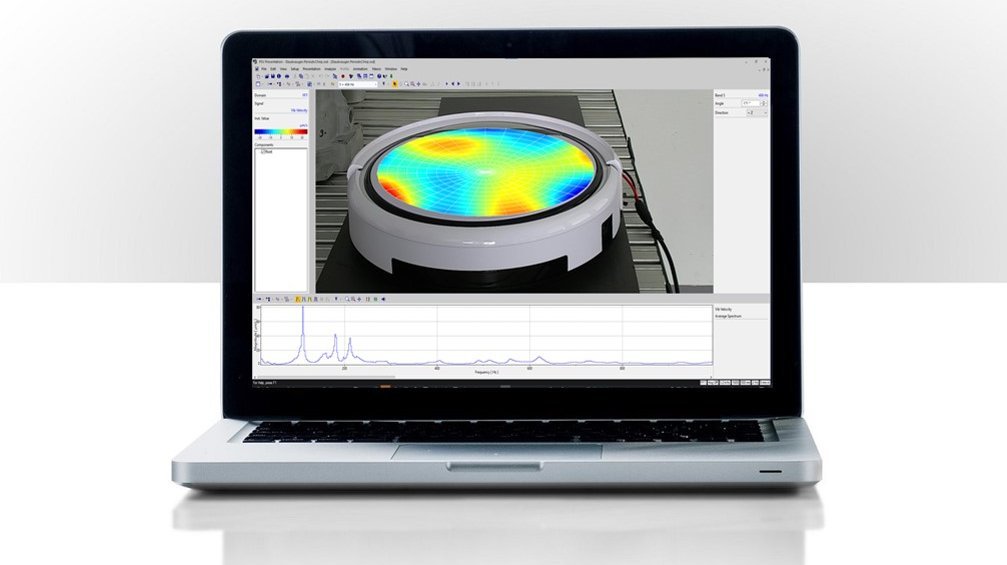

PSV Software
