真正数字便携式激光测振仪

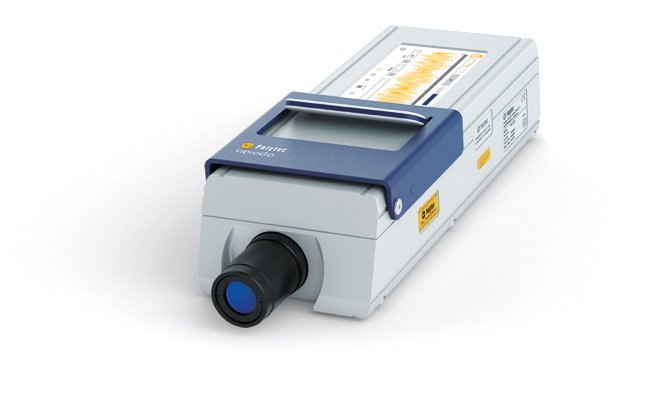

VibroGo®是一款真正便携式、可电池供电的激光测振仪,用于在现场对运行状态下的机器和设施进行快速、有效地状态监测。VibroGo®数字便携式激光测振仪,采用非接触式测量方法,无任何附加质量影响,直接显示时域和频域的测试数据。VibroGo®具有卓越的分辨率,测试带宽高达320 kHz,最远测试距离在30米以外。在整个频率范围内具有极佳线性度,是自然界和工业,如科学研究、产品开发和质量保证等测量动力学和声学特性的理想工具。
亮点
- 野外和实验室里的声学和动力学精密研究
- 操作简单,触摸显示屏,能自动聚焦
- 测试数据的车载数据存储、监控和快速分析
- 无线数据传输,远程控制
- 重量轻,功能强大,户外防护等级IP64,可选配移动电源,可续航3小时
- 测试距离高达30米,频率覆盖DC~320 kHz,速度高达6米/秒
- 可输出位移和加速度
- 可输出模拟信号和数字信号

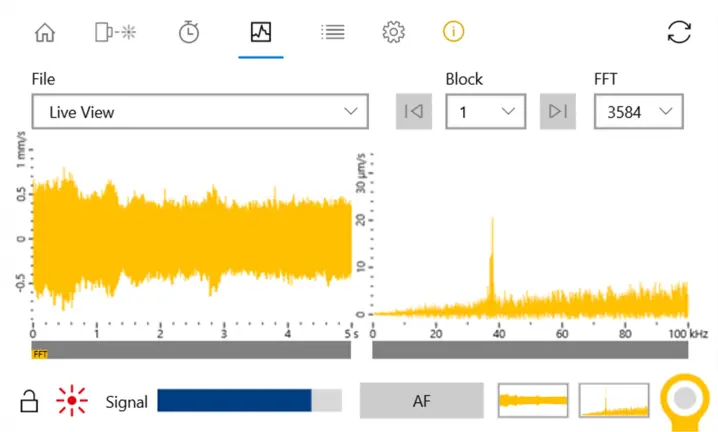

![集成了数据记录器,可通过任何网络浏览器监测机上数据。 集成了数据记录器,可通过任何网络浏览器监测机上数据。](/fileadmin/_processed_/6/f/csm_vibrogo-on-board-data-recorder-live-monitoring_7fc7b1f821.png)
车载数据记录,监控
随时随地为您提供服务:连续几个小时进行测量并记录振动数据,同时检查信号质量,并对参数设置进行微调。这种全自动智能操作,确保测试数据有效,以便进一步进行处理和分享。
使用VibroGo®在路上--移动使用的激光振动测量技术
配件和组件
Transportation case
![](/fileadmin/_processed_/9/9/csm_VibroGo-sensor-transportation-case_b806deefc0.jpg)
VIB-A-CAS16 Transp. Case
Robust transportation case for VibroGo. Included with sensor.
Optical accessories
![Vibrometer accessory - set of mirrors for customized vibrometer test setups Vibrometer accessory - set of mirrors for customized vibrometer test setups](/fileadmin/_processed_/1/5/csm_a-mir-xxxx-01_368811ce07.jpg)
A-MIR-xxxx Mirror Sets
Polytec's mirror sets contain different sizes of mirrors to assist in the set-up of your measurement.
![Vibrometer accessories - mirror set for customized test setups Vibrometer accessories - mirror set for customized test setups](/fileadmin/_processed_/5/3/csm_lm-mirror-set_02_1970518a3c.jpg)
OFV-036-M Pan/Tilt Adjustable Mirror
Mirror diameter 25 mm.
Tripods, test stands, positioning stages
![Vibrometer accessory tilt stage Vibrometer accessory tilt stage](/fileadmin/_processed_/a/7/csm_VIB-A-P01-Tilt-Stage_9140a26d30.jpg)
VIB-A-P01 Tripod Mountable Tilt Stage
![Vibrometer accessory 2-axis stage plus tilt function Vibrometer accessory 2-axis stage plus tilt function](/fileadmin/_processed_/3/9/csm_VIB-A-P02-2-Axis-Stage-X-plus-Tilt_a76a954183.jpg)
VIB-A-P02 Tripod Mountable Traverse/Tilt Stage
![Vibrometer accessory positioning stage Vibrometer accessory positioning stage](/fileadmin/_processed_/9/7/csm_VIB-A-P06-01_d76d2b1bab.jpg)
VIB-A-P06 Tripod Mountable X/Y/Tilt Stage
![Vibrometer accessory pan/tilt adjustable mounting plate Vibrometer accessory pan/tilt adjustable mounting plate](/fileadmin/_processed_/d/b/csm_VIB-A-P07-01_a841dfbbde.jpg)
VIB-A-P07 Pan/Tilt Adjustable Mounting Plate
For installation in industrial production lines. Allows fine adjustment of the tilt and rotation angles by ± 1.3°.
![](/fileadmin/_processed_/f/9/csm_VIB-A-T02-01_62267f91bf.jpg)
VIB-A-T02 Tripod with Pan/Tilt Head
![](/fileadmin/website/vibrometry/image/VIB-A-T05-01.jpg)
VIB-A-T05 Tripod with Geared Pan/Tilt Head
![Vibrometer accessory tripod Vibrometer accessory tripod](/fileadmin/_processed_/5/1/csm_vib-a-t08_a892d8ab2c.jpg)
VIB-A-T08 Tripod
Software, data acquisition
![VibSoft vibrometer data acquisition junction box VibSoft vibrometer data acquisition junction box](/fileadmin/_processed_/9/3/csm_vibsoft-20-01_63612810c8.jpg)
Data Acquisition and Analysis Software
Easy-to-use vibration analysis software with 2-channel USB data acquisition up to 20 kHz.
Cables
![Vibrometer accessory Ethernet cable Vibrometer accessory Ethernet cable](/fileadmin/_processed_/3/2/csm_A-CBL-0001-Ethernet-Cable-RJ_7bbecdb6b2.jpg)
A-CBL-0001 Ethernet Cable RJ 45/M12 5 m
Ethernet cable for digital data transfer between VibroGo and a computer (VibSoft 5.5 or newer required).
![Vibrometer accessory Ethernet cable Vibrometer accessory Ethernet cable](/fileadmin/_processed_/3/2/csm_A-CBL-0001-Ethernet-Cable-RJ_572d3a823e.jpg)
A-CBL-0002 Ethernet Cable RJ 45/M12 10 m
Ethernet cable for digital data transfer between VibroGo and a computer (VibSoft 5.5 or newer required).
![Vibrometer accessory Ethernet cable Vibrometer accessory Ethernet cable](/fileadmin/_processed_/3/2/csm_A-CBL-0001-Ethernet-Cable-RJ_54ff5dc9cb.jpg)
VGO-C-200-C04 Trigger Cable 1.5 m
For connection with the Trigger input (CON 4) (inlcuded in scope of delivery of VibroGo)
Power supply
![Vibrometer accessory Vibrometer accessory](/fileadmin/_processed_/5/b/csm_APPS_01_Plugin_c15f7cf331.jpg)
A-PPS-01 Plug-in power supply
Plug-in power supply 12 V AC / DC, included in scope of delivery of VibroGo
![MPS Mobile Power Supply for remote operation of VibroGo vibration sensor MPS Mobile Power Supply for remote operation of VibroGo vibration sensor](/fileadmin/_processed_/4/f/csm_a-mps-001-mobile-power-supply-01_fbe79af90a.jpg)
A-MPS-001 Mobile Power Supply
High-performance lightweight rechargeable battery (lithium polymer, A-MPS-PB1) for mobile power supply.
Wireless connectivity
![Vibrometer accessory WLAN stick (CE) Vibrometer accessory WLAN stick (CE)](/fileadmin/_processed_/9/6/csm_a-wic-001-wlan-stick-ce-03_343dfc988e.jpg)
A-WIC-001 WLAN-Stick CE
CE-certified WLAN stick for using wireless access. (For all countries of the EU, Switzerland, South Africa, India, Oman, Qatar)
![Vibrometer accessory WLAN stick (CE) Vibrometer accessory WLAN stick (CE)](/fileadmin/_processed_/9/6/csm_a-wic-001-wlan-stick-ce-03_09fb7ede0a.jpg)
A-WIC-002 WLAN-Stick FCC
FCC-certified WLAN stick for using wireless access (for USA, Canada, Rep. Taiwan)
Miscellaneous
![Vibrometer accessory safety googles Vibrometer accessory safety googles](/fileadmin/_processed_/2/f/csm_A-LAG-0633_487fd9beac.jpg)
A-LAG-0633 Laser Adjustment Goggle
Facilitates the precise pointing of the laser on the device under test.
![Icon accessory Icon accessory](/fileadmin/_processed_/a/5/csm_icon-accessories_92249ab3fd.jpg)
A-RET-xxxx Retro-Reflective Supplies
Selection of sprays, tape, sheets and micro glass beads for improvement of signal to noise ratio when measuring uncooperative surfaces.
