A new class – for new ideas
VibroScan QTec measures vibrations in a new way – non-contact and with unprecedented precision. With its groundbreaking multi-path interferometry and diversity combining, QTec® sets new standards in terms of optical sensitivity and interference immunity. It determines operating waveforms and eigenmodes for NVH, acoustics, structural dynamics, ultrasound, FEM validation and non-destructive testing and offers frequency ranges up to 32 MHz. With its SWIR wavelength, the Xtra Laser brings more power to the measurement. This means that larger measuring distances are realized. The combination with QTec® makes the Xtra laser insensitive to the angle of impact and surface.
The VibroScan QTec Scanning Vibrometer ensures maximum portability. The VibroLink Ethernet data interface reliably transmits vibration measurement data to your notebook and serves as an automation interface.
Highlights
- Non-contact and full-field with FEM-like spatial resolution
- Best SNR on technical surfaces
- Up to 10x faster with QTec®
- Upgradeable to up to 30 m/s vibration velocity and 32 MHz
- AI-supported grid generation
- Extended evaluation and scripting options
- Open API and drivers
- Expandable to a 3D system
Faster results with QTec® multi-path interferometry

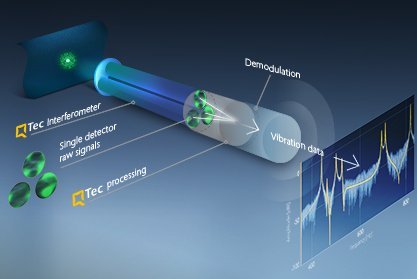

The patented QTec® multi-path interferometer technology boosts the signal quality of infrared laser vibrometer (SWIR) decisively. It provides highest optical sensitivity for high-fidelity measurements on all surfaces, which significantly reduces testing time – even on dark, biological, rotating or moving objects. This safe laser technology is perfect for challenging applications also on distant targets. QTec® makes vibration measurements faster, easier and more reliable than ever – for the most robust, unambiguous results.
3D is as easy as 1D

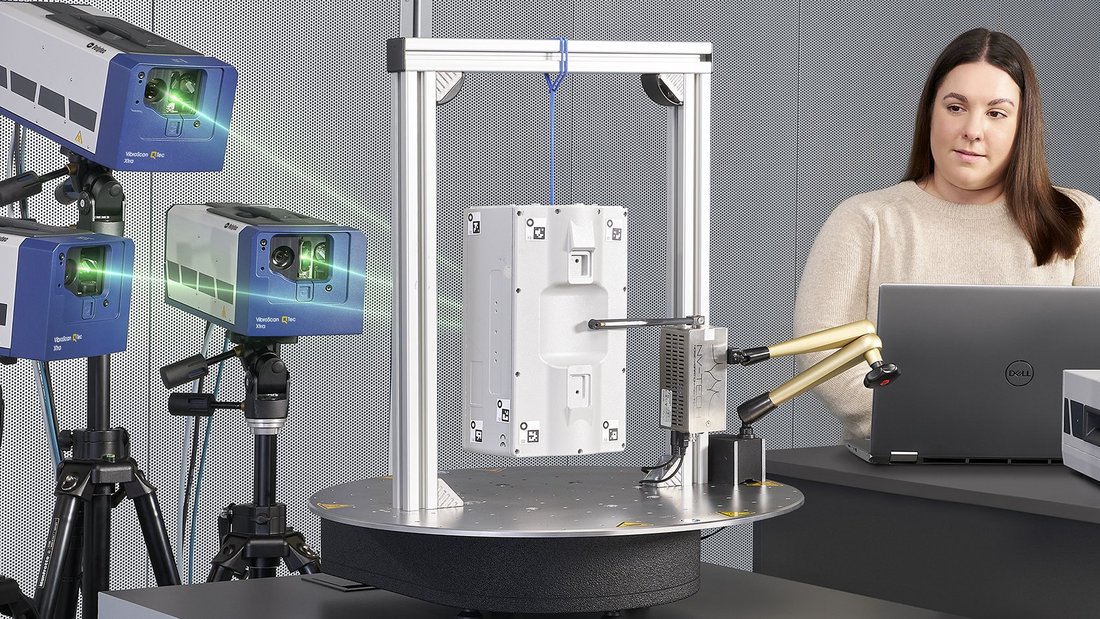

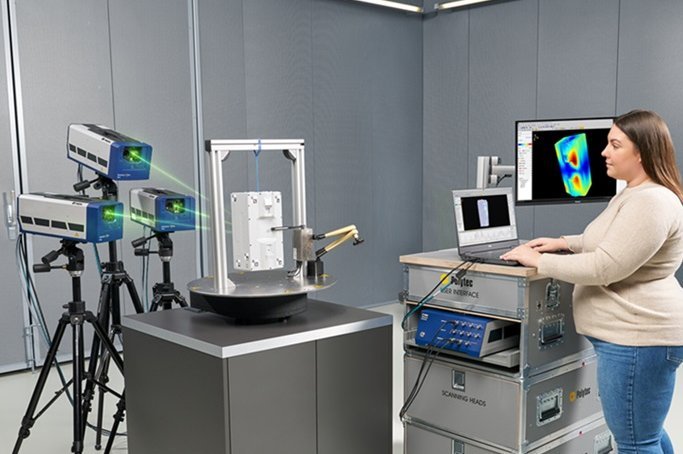

Connect three stand-alone VibroScan QTec and measure the three-dimensional vibration vector. With three synchronous measurements from three directions, all three dimensions of the vibration open up for analysis.
The hub synchronizes two additional vibrometers with picosecond accuracy - MIMO-capable signal generators included. The PSV software takes over the guidance, detects the position of the individual VibroScans QTec in relation to the object, synchronizes the three laser beams and guides them over the measurement object in a μm-sized measurement spot. The results are automatically transformed into the FEM coordinate system and animated according to the direction of vibration.
A new class – for new ideas
QTec® multipath interferometry for fast and efficient vibration measurement
Accessories and components
Optical Accessories

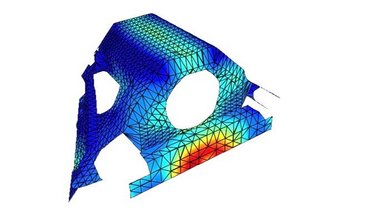

PSV-G-700 Geometry scanner
Integrated high-performance laser distance sensor for measuring the sample geometry from the scanning vibrometer perspective.

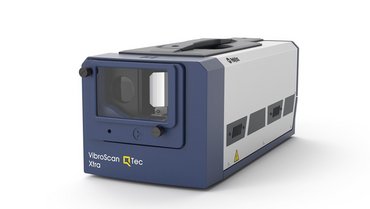

PSV-A-526 Front Window
Protects the scanning mechanism against dust, wind and acoustic excitation at high dB levels.
PSV-A-710-Xtra Close-up Unit
For measurements at a short working distance, especially on small parts. Additional PSV-A-CL-xxx micro scan lenses are available for small, reflective objects.
PSV-A-CL-xxx Micro Scan Lenses
Parallelized beam path for measuring small components and on reflective surfaces. Requires close-up unit.
PSV-A-RLight Ringlicht
LED ring light for illuminating small test objects. Requires PSV-A-710-Xtra coaxial unit and PSV-A-CLXtra-200 micro-scan lenses (Fig. similar)
A-MIR-S001/ A-MIR-S002 Mirror set
Mirror set for measurements in difficult-to-access areas.
Tripods, Test Stands, Positioning Stages

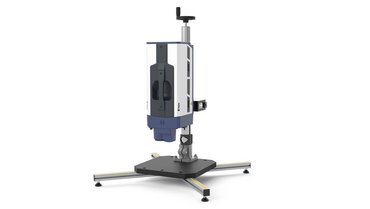

PSV-A-T19 Vertical Test Stand
Test stand for precise vertical positioning of the VibroScan QTec Scanning Vibrometer for measurement on small objects
PSV-A-T37 Vertikal Holder
For convenient overhead vertical mounting of the scanning vibrometer, e.g. for shaker tests.
Miscellaneous

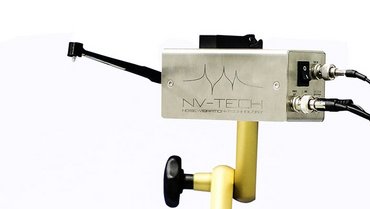

Scalable Automatic Modal Hammer SAM
Excitation of sample for experimental modal tests with repeatable force level. Broadly configurable and avoids double hits reliably.
A-AMP-0001 Amplifier for signal generator
Amplifies the max. 2 V output signal to max. 10 V with a bandwidth of up to 32 MHz.
PSV-E-Ext External Scanner Control
Allows for an additional control of the scanning mirrors by external voltage signals. Enables Continuous Scanning Vibrometry and tracking applications.
Related products
VibroScan QTec Xtra 3D
VibroScan QTec Xtra 3D measures vibrations triaxially in a new way - without contact, full-field and with unprecedented precision. With its groundbreaking multi-path interferometry, QTec® sets new standards in terms of optical sensitivity and interference immunity. The Xtra, based on an infrared (SWIR) laser is characterized by the highest optical sensitivity to guarantee highly accurate measurements even on demanding technical surfaces. VibroScan QTec Xtra 3D ensures maximum portability through integrated data acquisition and signal generator up to 32 MHz.
VibroScan QTec Neo
VibroScan QTec Neo measures vibrations in a new way - without contact, full-field and with unprecedented precision. For the first time, QTec technology has been successfully transferred from the infrared SWIR laser to the visible helium-neon laser. Featuring a small laser measuring spot, the precise helium-neon laser is suitable for measurements on the finest structures and even measures in and through water. QTec® always ensures a stable signal and the best signal-to-noise ratio. VibroScan QTec Neo ensures maximum portability with integrated data acquisition and signal generator up to 32 MHz.
PSV Software
The PSV Software is the heart of every Polytec full-field vibration measurement system. This comprehensive software package allows the fast and simple acquisition, display and editing of vibration measurement data gathered with all PSV Scanning Vibrometers, the MSA Micro System Analyzer series for microscopic observations or the automated structural test station RoboVib®.
RoboVib
By combining a 3D scanning vibrometer and an industrial robot, RoboVib® offers you an automated measuring station for measuring everything from complex components to complete vehicle bodies. Both the amount of time required and the sources of error – especially in experimental modal analysis – are reduced significantly. So you can thoroughly test a vehicle body, for example, in just one to two days, whereas you would previously have needed weeks to even prepare for the test itself.
RotoVib
RotoVib enables automated and full-body experimental modal analysis using Polytec’s optical 3D scanning laser vibrometers. Its easy to set-up hardware and software integrates seamlessly into the Polytec scanning vibration measurement workflow and saves time by automatically repositioning the devices-under-test (DUT) instead of a manual and tedious relocation of the sensor setup. 360° measurements of the DUT are as easy as a measurement from just one side.
PolyWave
PolyWave - the scalable software package for comprehensive analysis of vibration test data offers a seamless post-processing, making your vibration analysis with Polytec laser Doppler vibrometers more efficient than ever.

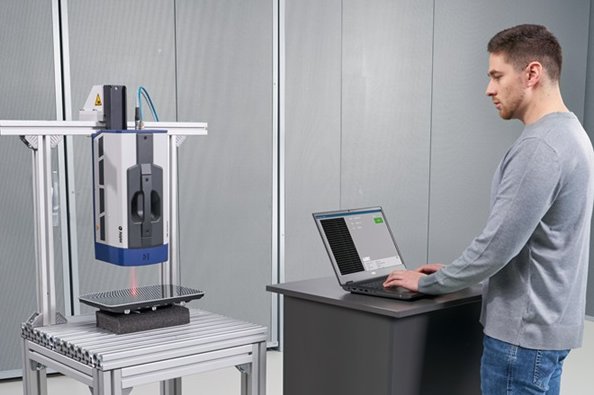

Automation
Polytec offers intuitive and powerful interfaces and options for remote control and automation of measurement data acquisition and evaluation. Speed up your tests by automating recurring measurements and evaluations, integration into your own testing software via driver, remote adjustment of measurement settings, querying and monitoring the device status and more.
