Superior roll gap control by laser precision

In steel rolling mills, the thickness of the finished coil is an essential quality parameter: Controlling the roll gap plays the crucial role in achieving the specified thickness tolerance throughout the length of the coil. Non-contact, optical sensors for precise material speed measurement at the entrance and exit of the roll stand enable fine adjustment of the roll gap for dynamic process optimization.

Laser Doppler based sensors like Polytec’s ProSpeed® LSV (Laser Surface Velocimeter) help to improve thickness control and product quality by allowing for enhanced roll gap control, especially during periods of acceleration and deceleration.

Roll gap measurement & thickness opimization in Rolling Mills?

Request demo
C-frame for combined speed and thickness measurement in rolling mills
C-frame for combined speed and thickness measurement in rolling mills

Application note

Optical speed measurement for AGC mass-flow control
Optical speed measurement for AGC mass-flow control

Application note

Optimizing strip speed for AGC mass flow
Optimizing strip speed for AGC mass flow

Paper

Industrial process control & sensor solutions for steel. aluminium & metal
Industrial process control & sensor solutions for steel. aluminium & metal

Brochure

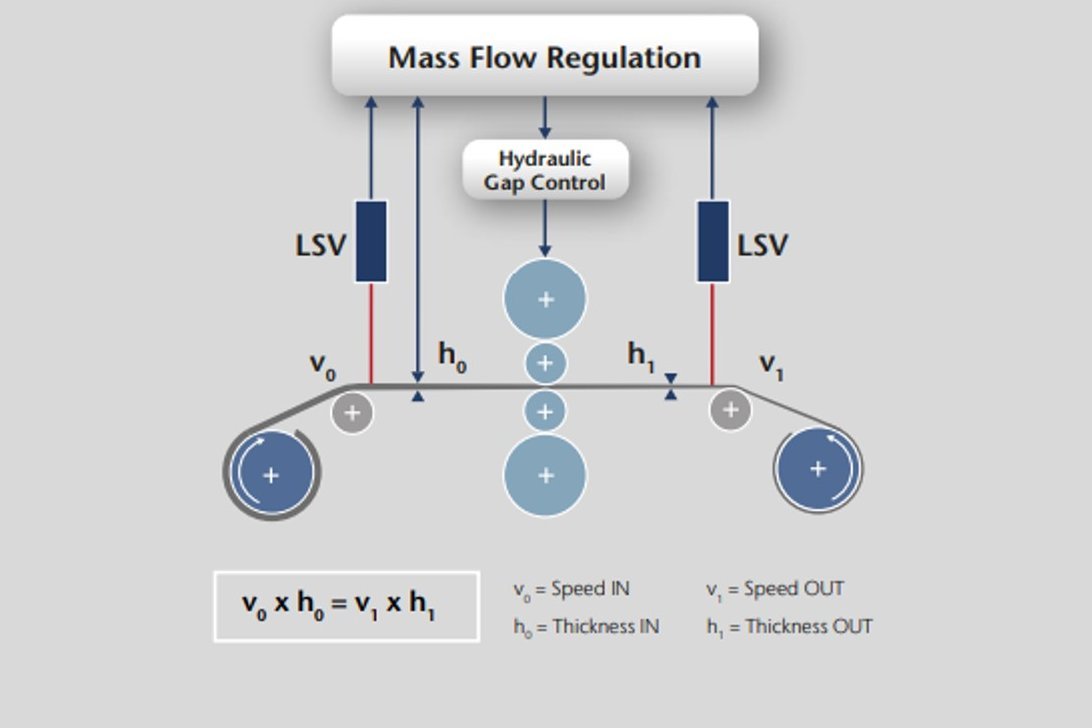

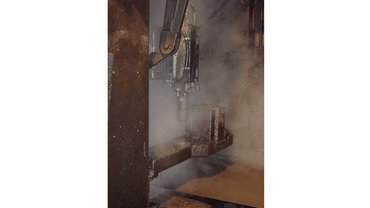

Controlling the roll gap with optical sensors according to the AGC mass flow principle in rolling mills
Controlling the roll gap with optical sensors according to the AGC mass flow principle in rolling mills

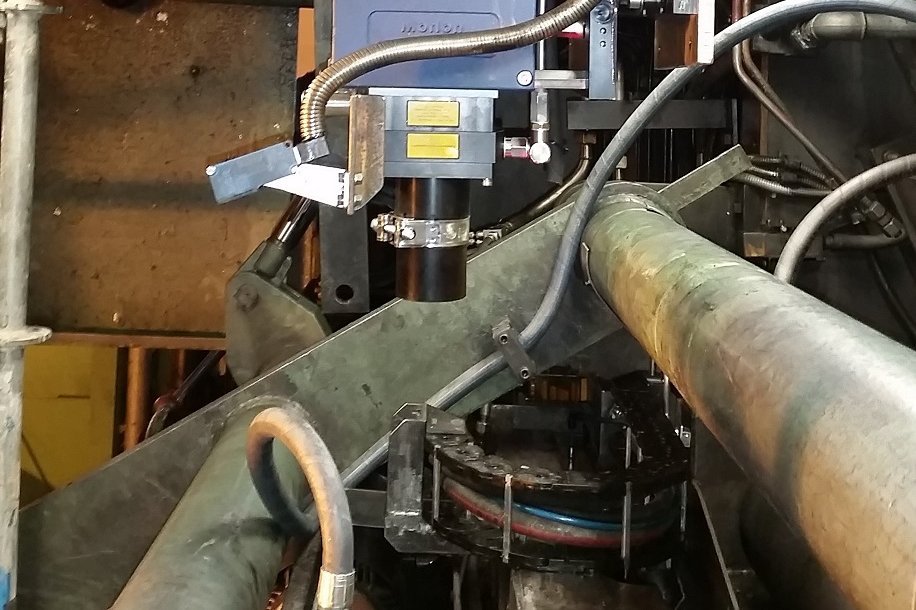

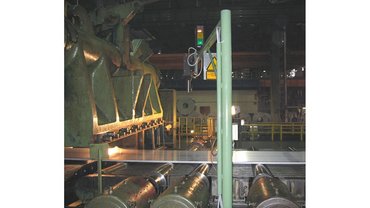

Speed measurement in aluminum cold rolling mill, roll gap control with ProSpeed optical sensors
Speed measurement at the exit of an aluminum cold rolling mill for roll gap fine-adjustment using optical ProSpeed LSV sensors from Polytec

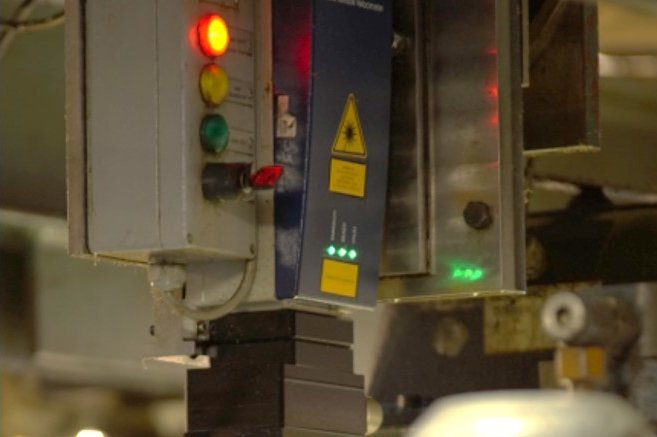

Mass flow control in cold rolling mill (CD Wälzholz)
Mass flow control using laser sensors in cold rolling (rolling mill CD Wälzholz)
Controlling the roll gap with optical sensors according to the AGC mass flow principle in rolling mills
Controlling the roll gap with optical sensors according to the AGC mass flow principle in rolling mills
Speed measurement in aluminum cold rolling mill, roll gap control with ProSpeed optical sensors
Speed measurement at the exit of an aluminum cold rolling mill for roll gap fine-adjustment using optical ProSpeed LSV sensors from Polytec
Mass flow control in cold rolling mill (CD Wälzholz)
Mass flow control using laser sensors in cold rolling (rolling mill CD Wälzholz)

Definition of roll gap & control in the rolling mill

The roll gap in cold rolling mills and hot rolling mills refers to the space between the rolls in a roll stand in which the forming of the rolled material depending on the roll gap force takes place. The setting of this gap is crucial for the roll gap force, determining the thickness of the rolled metal (e.g. rolled steel sheets, rolled flat bar or rolled steel tube). Controlling the height of the roll gap, often supported by precise measurements using laser technology, allows direct control over the material thickness and speed.

Effective roll gap control requires a combination of precise thickness and speed measurements at the entrance and exit of the roll stand.  Automatic Gauge Control (AGC) is a well established technique for precise control of the roll gap in Tandem, Reversing and other types of Rolling Mills. This technique has enabled better thickness control throughout the length of the coil, a higher level of quality repeatability from coil to coil and improved process effeciency.

Measuring roll gap width & process speed in rolling mills with laser precision?

Contact us
Laser sensor as encoder for cold rolling steel mills, rolled metal and roll gap control
Laser sensor as encoder for cold rolling steel mills, rolled metal and roll gap control

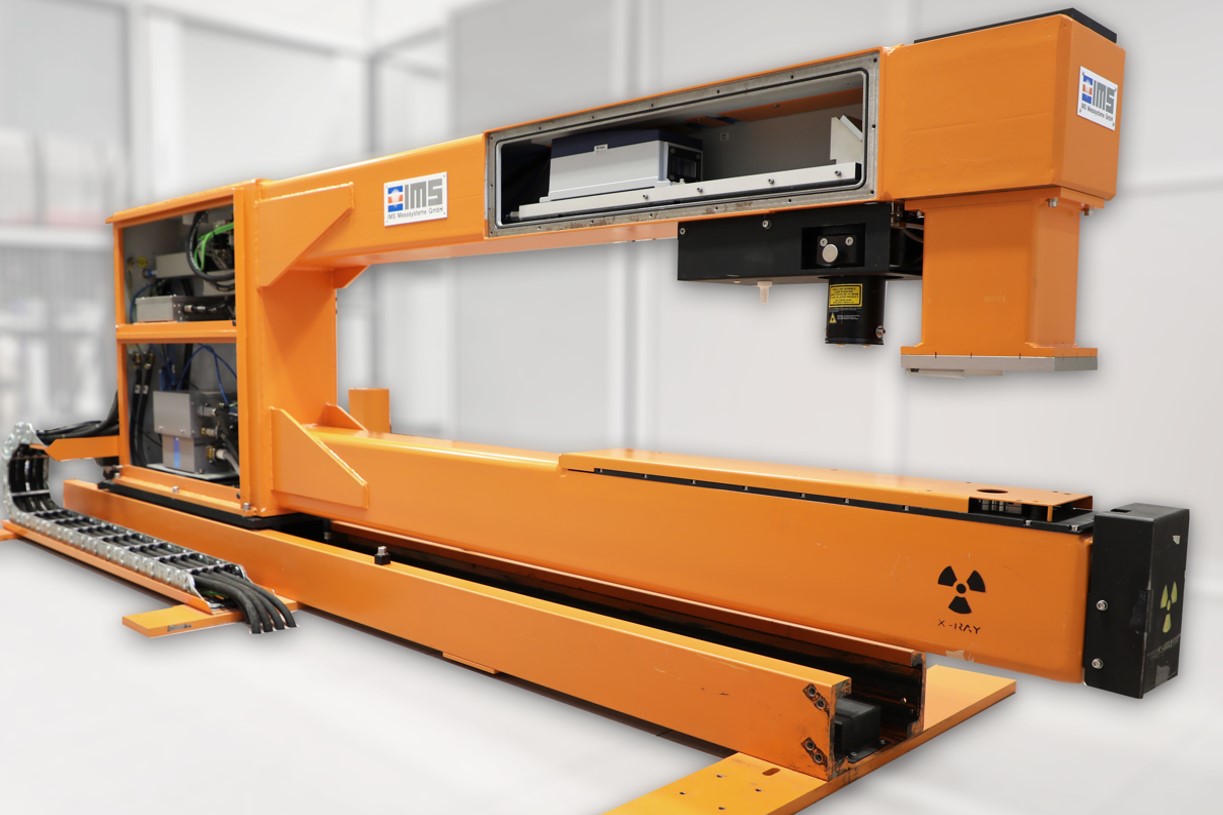

Combined thickness tolerance measurement according to the mass flow principle, C frame by IMS
Combined thickness tolerance measurement according to the mass flow principle, C frame by IMS

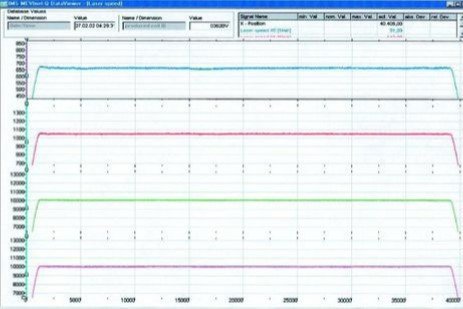

Measurement data of strip speed captured simultaneously by four Polytec LSV sensors in IMS C-frames for mass-flow control
Measurement data of strip speed captured simultaneously by four Polytec LSV sensors in IMS C-frames
Laser sensor as encoder for cold rolling steel mills, rolled metal and roll gap control
Laser sensor as encoder for cold rolling steel mills, rolled metal and roll gap control
Combined thickness tolerance measurement according to the mass flow principle, C frame by IMS
Combined thickness tolerance measurement according to the mass flow principle, C frame by IMS
Measurement data of strip speed captured simultaneously by four Polytec LSV sensors in IMS C-frames for mass-flow control
Measurement data of strip speed captured simultaneously by four Polytec LSV sensors in IMS C-frames

Measuring roll gap and strip thickness

Measuring the strip thickness is conducted by using C-frames, while the speed is being measured in front of and behind the roll stand using a Laser Surface Velocimeter (LSV). With its compact sensor design, the LSV simplifies the integration into the C-frame, saving additional installation work. As the velocity measurement is highly accurate, this combination of strip thickness measurement and LSV allows the required rolling force to be predicted more accurately and the thickness specification of the end product to be better adhered to. This improves quality and therefore increases productivity.

Dear visitor, in order to be able to watch our videos please accept the cookies. All information about the usage of cookies can be found in our privacy policy

Controlling the roll gap width with laser sensors

Roll gap control benefits significantly from the use of Polytec's LSV Laser Surface Velocimeters. LSVs measure the strip speed highly accurately and reliably on many surfaces from glossy to matt according to the laser Doppler velocimetry. Even on dirty or oily surfaces, the LSV provides a stable measurement signal for process control. In contrast to alternative measuring methods, the LSV does not experience any slippage or wear, which means that the roll gap can be precisely adjusted without being affected by the material.

Encoders for Cold Rolling, Hot Rolling, Tandem or Reversing Mills

Request quote
4-high rolling mill equipped with a Polytec LSV Laser Surface Velocimeter (CD Wälzholz)
4-high rolling mill equipped with a Polytec LSV Laser Surface Velocimeter

Controlling the roll gap via skin pass and stretching degree

The control of the roll gap during cold rolling is decisevely influenced by the precise measurement and control of the strip speed at the infeed and outfeed of the roll stand.  Mechanical contact based tachometers are traditinoally used for this purpose. However, contact methods of measureing strip speed are susceptible to slip and wear, resulting in measurement errors – especially evident during acceleration and deceleration.

These precise measurements become the basis for fine-tuned control of the roll gap, showing significant influence on the mass flow control. By using this optical measuremen technology, major stainless steel manufacturers worldwide had proven to significantly improve the accuracy of their roll gap control, achieving a reduced measurement uncertainty of the skin pass degree down to ± 0.02 %!

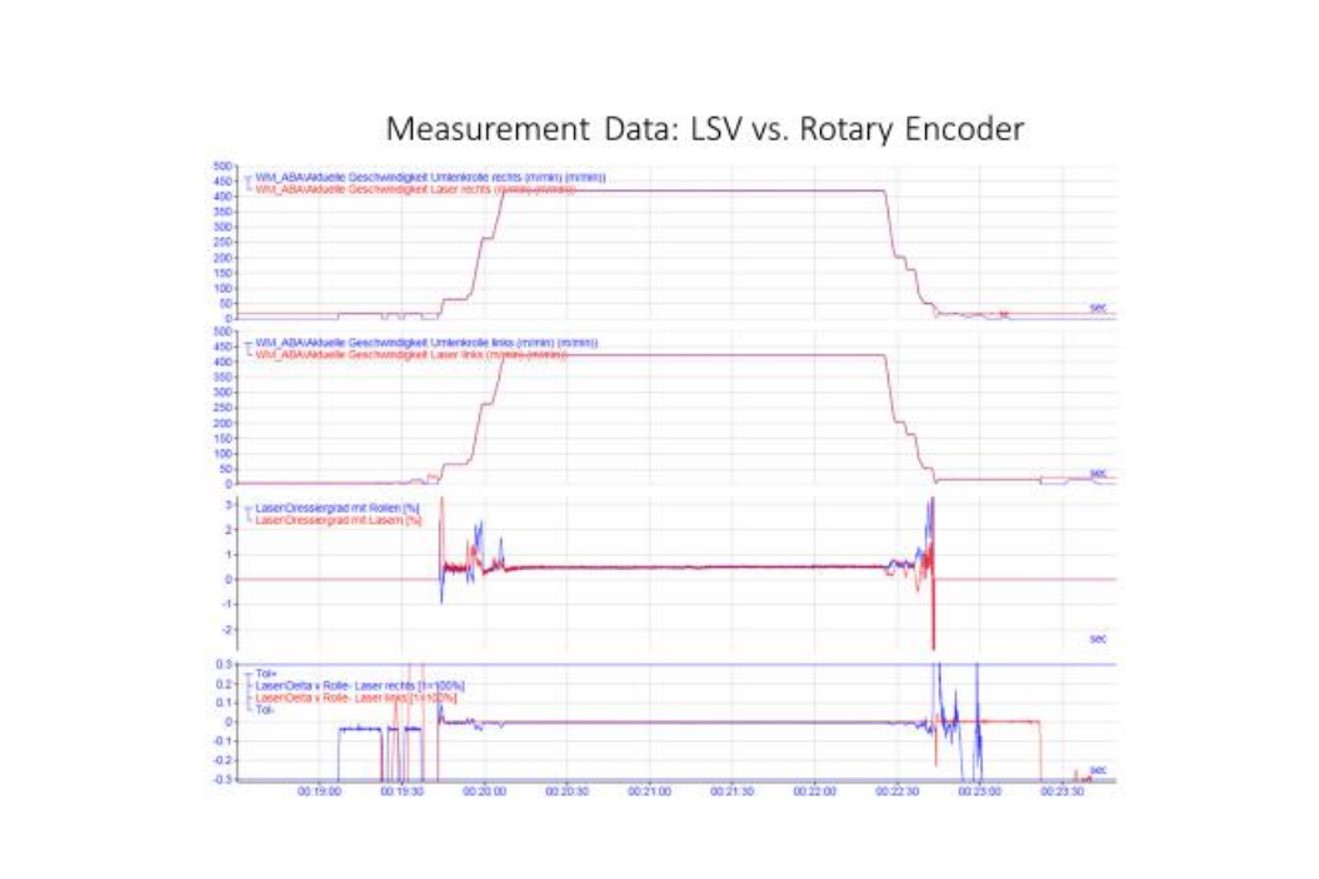

Measurement data showing mill entry and mill exit speed & elongation. Optically with LSV in red; deflector roll in blue)

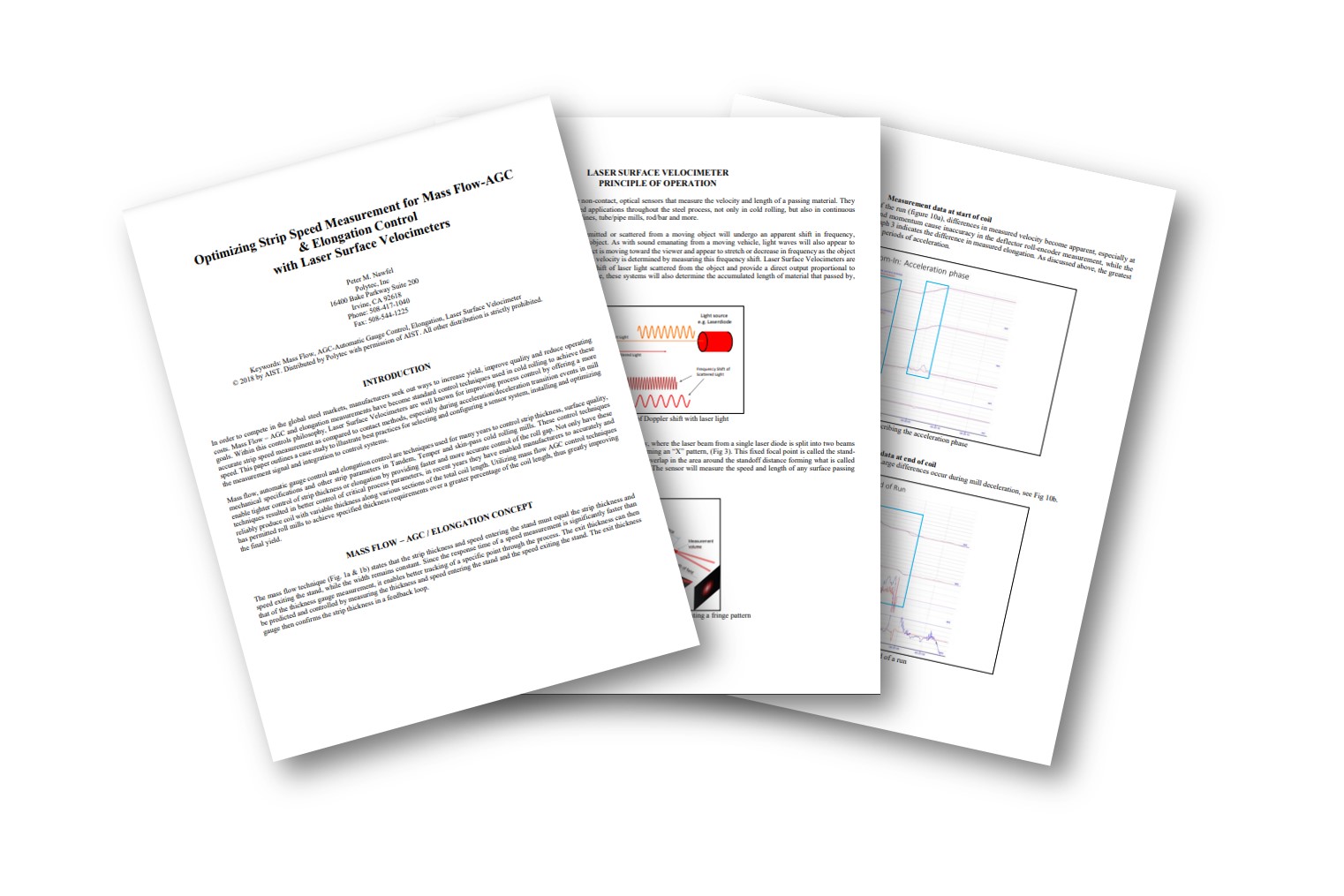

Sign up for a free download o the 8page paper about ACG mass flow control
Sign up for a free download o the 8page paper about ACG mass flow control
Measurement data showing mill entry and mill exit speed & elongation. Optically with LSV in red; deflector roll in blue)
Sign up for a free download o the 8page paper about ACG mass flow control
Sign up for a free download o the 8page paper about ACG mass flow control

Automatic Gauge Control (AGC) for mass flow control

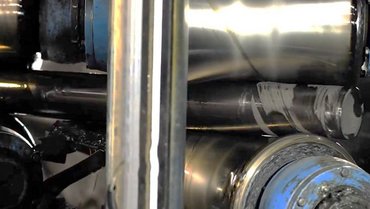

Elongation is achieved through the temper/skin pass mill. Unlike tandem mills, which are designed for major reduction, temper/skin pass mills are designed to achieve the desired specifications for flatness, surface finish & quality, as well as final mechanical properties of the strip. Elongation control can range from roughly 0.25% to 4% depending on specifications and is controlled, similarly, by measuring and comparing the entry speed and exit speed of the mill.

The advantage to using LSV’s is the improved strip speed measurement for mass flow calculations and elongation measurements. The following graph shows a comparison of speed as measured by a Polytec LSV and that of the deflector roll encoder.
