Reliable detection of gas leaks
Optical gas imaging (OGI) cameras are special infrared cameras for the detection and visualization of gas leaks. The technology enables the reliable detection of volatile emissions (volatile organic compounds or VOCs) such as methane and other organic gases through the use of a unique spectral filtering method. This increases safety, reduces environmental pollution and saves costs by reducing gas losses.
New EU regulation on methane emissions
Efficient leak detection with OGI cameras from Polytec
The EU regulation on reducing methane emissions in the energy sector has been in force since August 2024. This regulation obliges operators of oil, gas and coal infrastructure to take strict measures to monitor and reduce their methane emissions. The regulation also applies to importers of fossil fuels.
Obligations for operators and importers:
- Measurement and monitoring: operators must regularly measure and monitor their methane emissions.
- Reporting and verification: Comprehensive reports must be drawn up and independent verifications must be carried out.
- Leak detection and repair: Regular leak detection inspections are mandatory to minimize emissions.
- Ban on flaring and venting: The routine flaring and venting of methane will be largely banned by 2027.
OGI cameras from Polytec offer a highly effective solution to meet the requirements of the new EU regulation. These specialized infrared cameras make it possible to identify and locate even the smallest methane leaks in real time.
Key benefits of Polytec's OGI cameras:
- Precise leak detection: detect the smallest amounts of methane and other volatile organic compounds (VOCs) accurately and reliably.
- Real-time monitoring: Real-time visualization of leaks enables immediate remedial action.
- Increased safety: Remote monitoring minimizes risk to maintenance personnel.
- Compliance and reporting: Support compliance with strict EU regulations and integrate the collected data directly into your reports.
- Cost savings: Reduce losses from unused methane and avoid environmental penalties through early detection and repair of leaks.

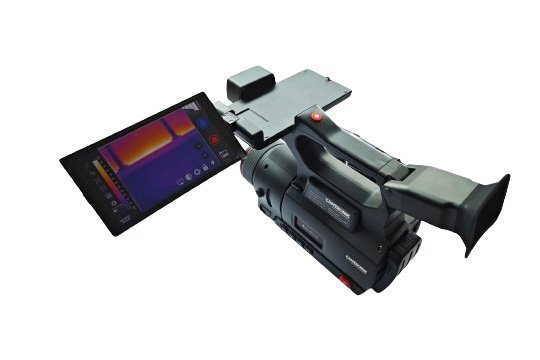

V340 infrared camera for detecting gas leaks
The Cantronic V340 Optical Gas Imaging (OGI) camera offers exceptional gas leak detection capabilities. The camera can detect even the smallest leaks of over 400 different volatile organic compounds (VOCs), including methane, benzene, ethanol and gasoline. With a spectral range from 3.2 μm to 3.5 μm wavelength, the V340 ensures comprehensive coverage and accurate detection.
Equipped with Cantronics' advanced High Operating Temperature (HOT) MWIR OGI infrared detector, the V340 enables users to quickly detect gas leaks and pinpoint their source. Crystal clear images in real time allow the user to scan large industrial areas quickly, ensuring high leak detection efficiency.
Detectable gases
The camera can detect over 400 compounds, including methane, acetic acid, benzene, butadiene, butane, dimethylbenzene, ethane, ethylene, ethylbenzene, ethylene oxide, hexane, heptane, isobutylene, isopropyl alcohol, isoprene, methanol, methyl ethyl ketone, octane, pentene, propane and many more.
Expand your gas leak detection capabilities and optimize your processes with the V340 OGI camera. Ask us today, we will advise you individually and focused on your application.
Highlights
Exceptional image quality - accurate and fast identification of leaks with outstanding clarity
Advanced HOT MWIR infrared detector - high sensitivity, minimal power consumption and long service life
Live scene display - view gas leaks in real time, with video recording and snapshot function
Application demo V340 camera
Exemplary recording of different exhaust gas emissions of volatile organic compounds (VOCs).
M330/M630 Stationary camera for the detection of VOCs and methane gas leaks
Designed for real-time online detection of volatile organic compounds (VOCs) and methane gas leaks, the innovative M330 and M630 fixed OGI camera solutions offer exceptional performance and reliability.
The cameras are equipped with a pan and tilt dual-vision arrangement and enable 24/7 real-time visualization and detection of gas leaks. They are made of corrosion-resistant stainless steel and ensure safe and stable operation even in the most demanding environments.
The models are suitable for process industries and plants such as refineries, oil and gas storage facilities, natural gas storage and transportation facilities, chemical/petrochemical plants, biogas plants and power stations. They are the reliable solution for comprehensive gas leak detection.
Highlights
Visualization of gas leaks - rapid identification and response to potential hazards
Videos for the preservation of evidence - video capture for documentation and analysis, as a sound basis for decision-making for compliance with legal regulations
Non-destructive, non-contact inspection - inspections without damage or interruption for minimal downtime
Sample recording monitoring application
Exemplary recording of emissions of volatile organic compounds (VOCs) in a chemical industrial plant.
U-340 airborne inspection system for gas leaks of volatile organic compounds
The U-340 VOCs gas leak detection system represents the pinnacle of detector design. It is designed to detect and visualize methane and other volatile organic compounds with unparalleled precision. The system consists of the DJI M300RTK drone and the D340 pod-type VOCs gas leakage infrared camera, which provides comprehensive coverage and real-time monitoring.
The infrared camera is equipped with a high-sensitivity 320 x 256 HOT MWIR detector, which ensures optimal performance in detecting gas leaks in various industrial environments. Thanks to UAV image transmission, users can observe dual-light images of VOC gas leaks in real time, enabling fast and informed decision making. The U-340 system is ideal for real-time online detection of VOC gas leaks in critical industrial environments such as refineries, offshore oil and gas production platforms, natural gas storage and transportation facilities, chemical industries, biogas plants and power plants.
Highlights
VOC gas visualization - Visualize volatile organic compounds (VOCs) instantly and accurately, enabling rapid identification and response to potential leaks.
Image/video capture from a safe distance - With the DJI M300RTK UAV, you can capture high-quality images and video from a safe distance, ensuring operator safety while providing comprehensive monitoring.
Efficient inspection path planning - Precisely plan and execute inspection paths to maximize efficiency and coverage while minimizing downtime and service interruptions.
Example application
Recording of a drone flight to detect volatile organic compounds of a gas leak with parallel display of simultaneous VIS images.
