Sintering silver, copper and other printed materials with a high pulse energy

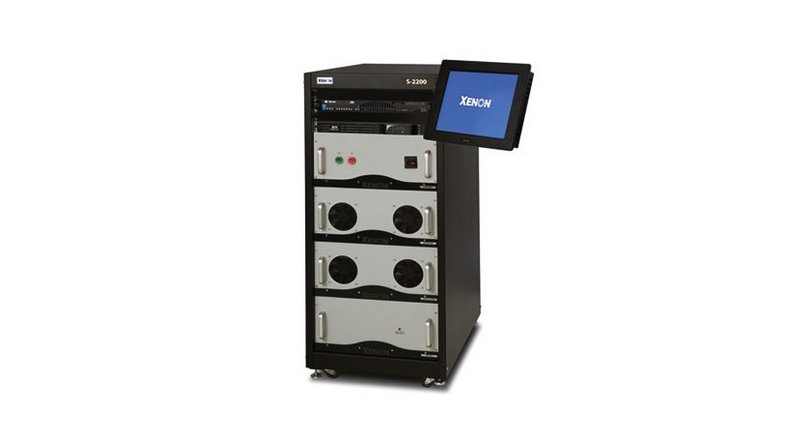

The Sinteron S-2200 offers you state-of-the-art energy management. It meets all your needs when it comes to researching and developing new processes while processing printed nanomaterials and also to swift sintering on heat-sensitive substrates.
The special properties include:
- Configurable, high-frequency pulse sequences
- Single-pulse mode for high energies of up to 4 kW/cm²
- Graphical user interface and ease of use
- Simple synchronization with the linear table
The system can be combined with a multitude of lamps and thus adapted to the area to be processed. The optical effective area is, for instance, 19 × 305 mm for the 16” linear lamp or around 140 mm in diameter for the spiral lamp.
![](/fileadmin/_processed_/e/6/csm_lineartisch_01ede1e2de.jpg)
LS-845 Linear Table
The light of the linear lamp is screened from the user to ensure safe working. Suitable for working with sheets such as DIN A4 paper.
![](/fileadmin/website/optical-systems/uv-technik/image/uv-universal-sintersystem-s-2200.jpg)
Chamber for the Spiral Lamp
The optional LC-915 chamber allows you to work safely with the spiral lamp.
