Sintering silver, copper and other printed materials

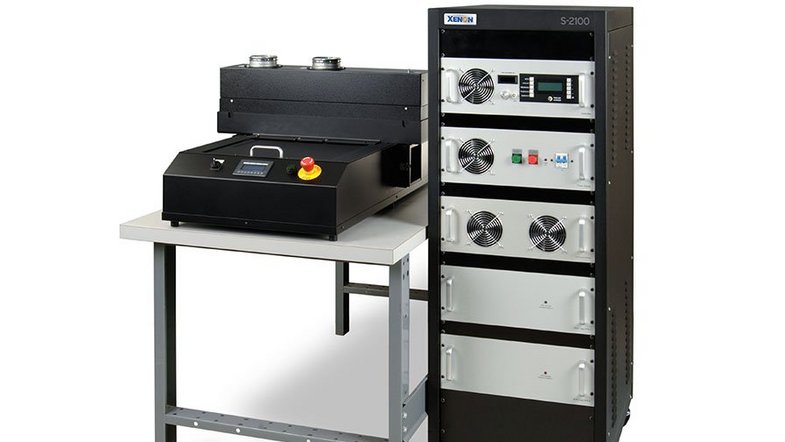

The Sinteron S-2100 is a system for sintering silver, copper and other inks, curing thin-film substrates and treating surfaces in semiconductor and photovoltaic applications. The power supply units are housed in a 19″ rack. Power supply units and cooling form part of the system.
Pulse widths can be selected in the range between 100 and 2,000 microseconds. The pulse energy can be set between 27 and 2,000 joules/pulse.
The system can be varied with a multitude of lamps and thus adapted to the area to be processed. The optical effective area is, for instance, 19 × 305 mm for the 16″ linear lamp or around 140 mm in diameter for the spiral lamp.
LS-845 Linear Table
The light of the linear lamp is screened from the user to ensure safe working. Suitable for working with sheets such as DIN A4 paper.
Chamber for the Spiral Lamp
The optional LC-915 chamber allows you to work safely with the spiral lamp.
