Suppress optical feedback

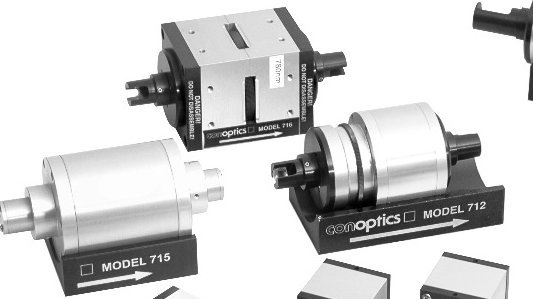

Optical isolators with a preset output polarizer for the rotator glass. In the A configurations, the “input end” is the end with the setting ring. In the B configurations, the input polarizer is aligned for vertical input polarization and the output polarizer is at 45 degrees to the input.
One and Two-Stage Optical Isolators
Optical isolators with a preset output polarizer for the rotator glass. In the A configurations, the “input end” is the end with the setting ring. In the B configurations, the input polarizer is aligned for vertical input polarization and the output polarizer is at 45 degrees to the input.
Model Number | Setting Range | Isolation | Transmission |
711A | 500–645 nm | 37–40 dB | 92 % |
711C-1 | 350–390 nm | 28–30 dB | 85 % |
711C-2 | 390–450 nm | 28–30 dB | 85 % |
711C-3 | 425–500 nm | 28–30 dB | 85 % |
712A | 532–715 nm | 37–40 dB | 92 % |
712B | 644–780 nm | 37–40 dB | 92 % |
712TGG | 700–900 nm | 37–40 dB | 92 % |
713A | 650–900 nm | 37–40 dB | 92 % |
713B | 790–980 nm | 37–40 dB | 92 % |
714A | 680–1080 nm | 37–40 dB | 92 % |
715 | 965–1135 nm | 37–40 dB | 92 % |
716 (Double) | Specify center λ | 56–60 dB | 88 % |
716TGG | 1064 nm | 56–60 dB | 88 % |
Polarization-Independent Optical Isolator
Optical isolator with a preset output polarizer for the rotator glass.
A configuration: The “input end” is the end with the setting ring.
B configuration: The input polarizer is aligned for vertical input polarization and the output polarizer is at 45 degrees to the input.
C configuration: If the source is polarized horizontally, you can easily remove both the setting screws at the base and turn the isolator by 90 degrees so that the two threaded holes on the cylinder are aligned with the fastening screws on the base.
