Vibration and acoustic testing software for in-line process control
SonicTC QuickCheck is a flexible tool for acoustic and vibrometric measurements in industrial quality control. The versatile fields of application reach from series production to in-process development. SonicTC QuickCheck is a multichannel, PC-based software for semi or fully automatic process monitoring and quality control based on the vibration behaviour of the products. The range limits for each product test are assigned a priori during quality examinations of good and bad products, entered into the software and stored in a database.
Highlights
- 100% quality tests (traceable results according to DIN/ISO 9000 ff)

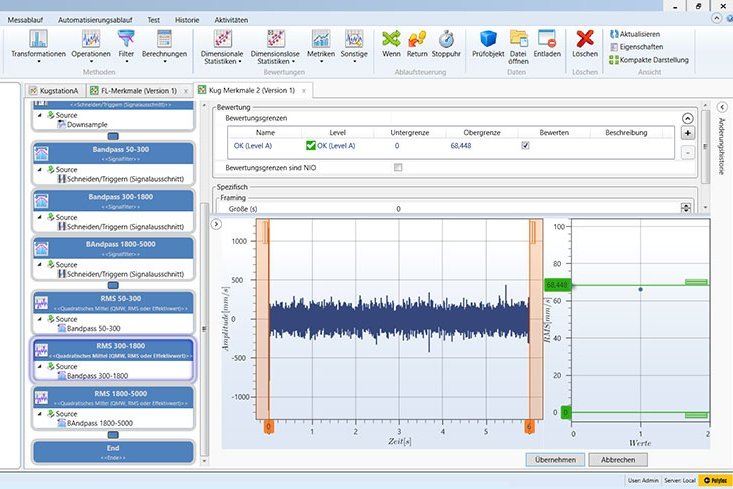

- Clear pass/fail analysis in time and frequency domain with filter and cut functions
- Product-specific parameters, algorithms and limiting values
- Data storage and communication with the production control system
- Configurable sequence control
- Fully automatic conversion to different types of test samples
- Digital data interface for Polytec Laser Vibrometer
Reliable pass/fail decisions in-line
Geared up for industrial production processes, QuickCheck helps to reliably decide between good parts and failure for immediate ok/ not ok feedback in the following applications
- Noise and vibration testing
- Material testing
- Flaw (crack) testing
- Strength testing
- Operational vibration analysis
- Process control

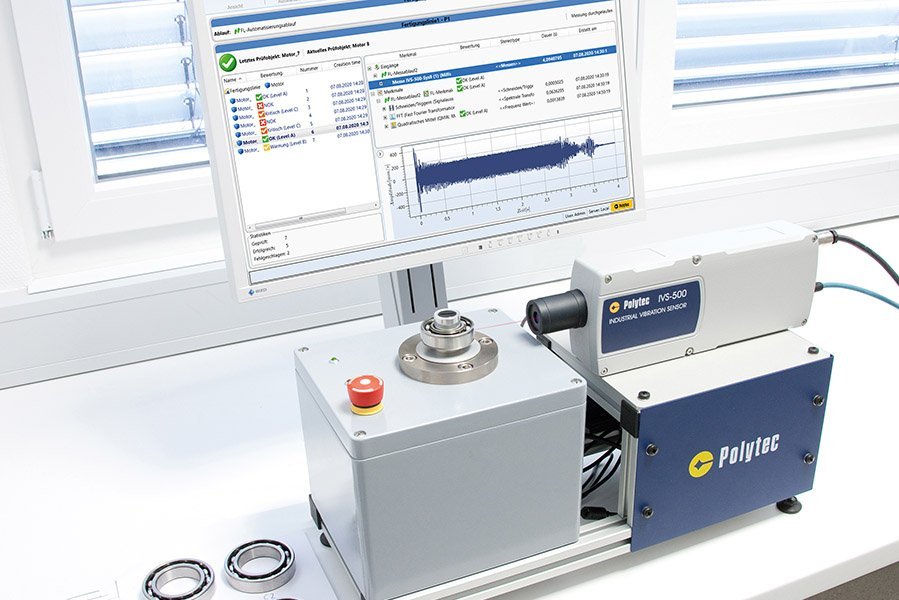

The software stands out due to its user-friendly operating and programming interface, which can be optimally adapted to any application. Non-contact laser Doppler vibrometers such as the IVS-500 are detected by the software via the digital interface. They can be directly controlled and measured data can be transferred - without additional data acquisition hardware.
