One-box solution for laser vibration analysis

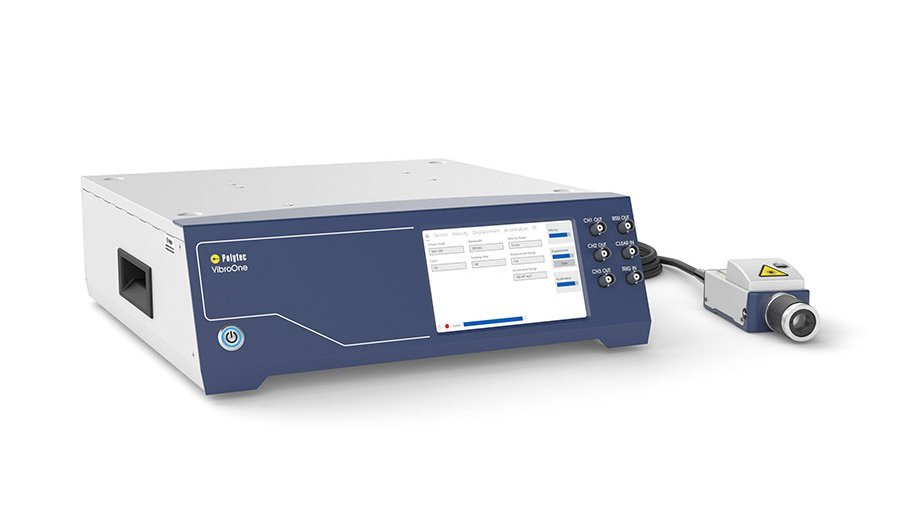

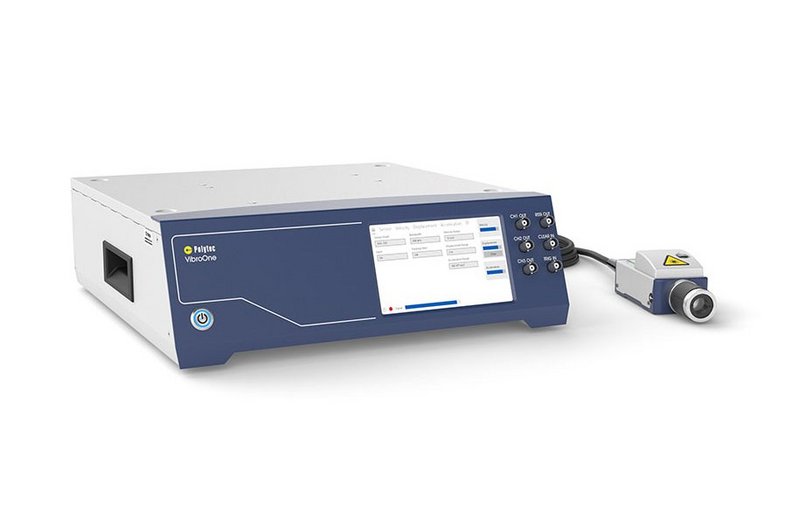

The Polytec VibroOne® laser Doppler vibrometer is the one-box solution for non-contact vibration measurement. With VibroOne® you analyze acoustics, dynamics and vibration issues in both R&D and industrial quality control with laser precision. VibroOne® comprises an all-in-one front-end with integrated laser and a fiber-coupled, compact sensor head. Integrated with the VibroLink digital interface and the VibSoft data acquisition and analysis software, this vibration measurement system is ready to point, shoot and measure in an instant.
Highlights
- Non-contact measurement of vibration, acoustics and dynamics with laser precision
- Compact and ruggedized design for simple handling in labs and production testing
- Easy setup and test documentation with optionally integrated HD+ camera
- Measure from DC to 3 MHz with highest time resolution
- Synchronous output of displacement, velocity and acceleration
- VibroLink digital interface for convenient setup, data transfer and best SNR
Laser vibrometry focusing on the small details

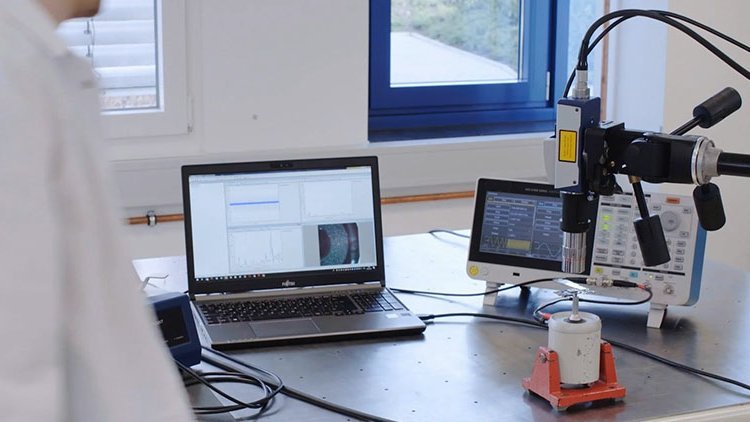

Characterize small and delicate structures in a non-contact way. Analyze vibration, acoustics and dynamics. Measure biomedical samples, electronics components and microstructures like MEMS by light, without mass-loading, and from DC up to the GHz range on a large bandwidth. Laser vibrometers focus on the small details, measuring deflection shapes for model validation. They assess the frequency response and determine resonance frequency, impulse response and Q factor. No matter how big or small – Polytec vibrometers measure it!
Vibration measurement in tight setups

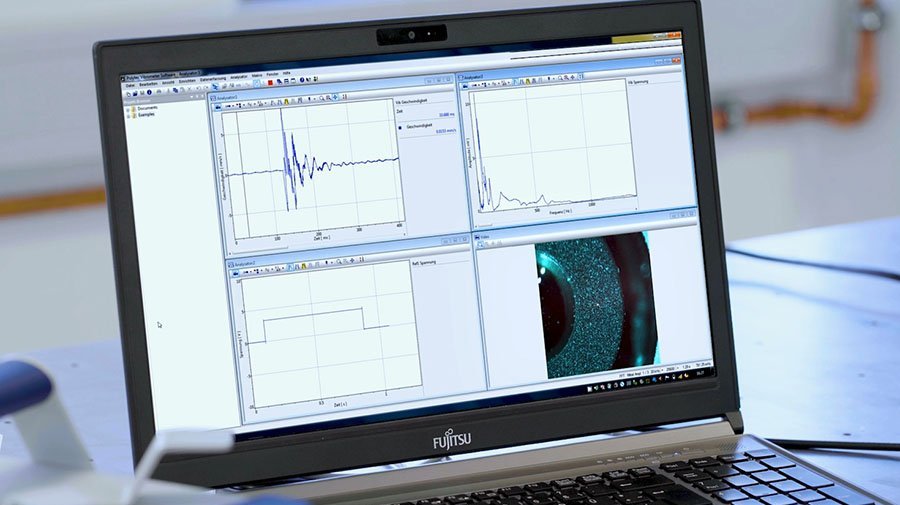

VibroOne® is specifically designed for tightly packed setups, whether in research laboratories, challenging production environments or for non-contact analysis of tiny details on microstructures or biomedical probes. The optional inline HD+ camera helps positioning the laser precisely and provides proper test documentation. An optical filter adjusts for a perfect contrast of the laser spot. Optional microscope lenses focus to a 1.5 μm laser spot, even allowing the inspection of fine details.

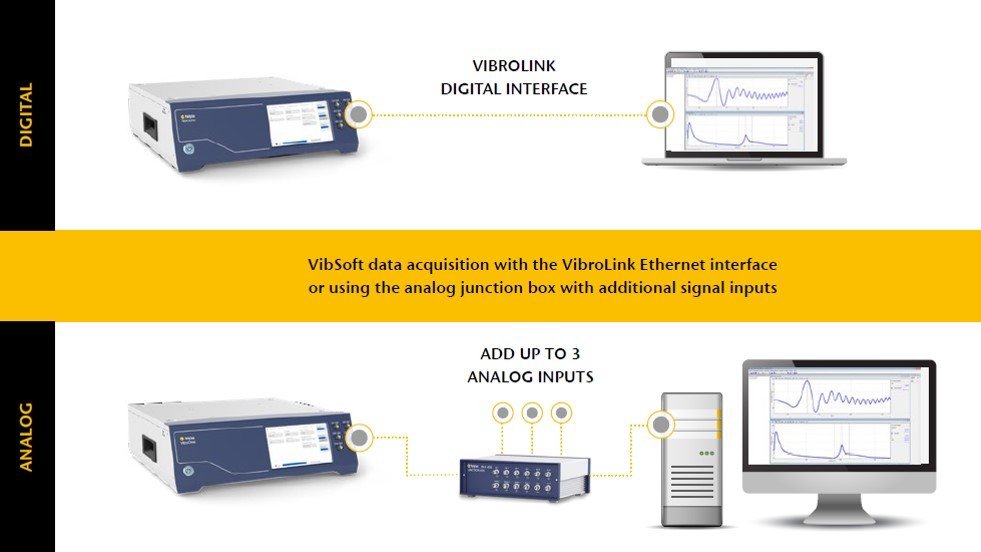

The all-in-one laser vibrometer VibroOne® allows measuring frequencies on a large bandwidth from DC up to 3 MHz with highest time resolution. The measurement system offers analog outputs for measuring displacement, vibrational velocity and acceleration synchronously. The digital VibroLink interface provides a convenient, fully digital transfer of the measured velocity signal via Ethernet to a notebook or computer. Thus it allows a comfortable and powerful analysis in time and frequency domain with the Polytec VibSoft data acquisition and analysis software with the best signal-to-noise-ratio (SNR). Thanks to its analog BNC signal outputs, VibroOne® is also compatible with conventional data acquisition hardware.
