Acoustic quality control with laser precision

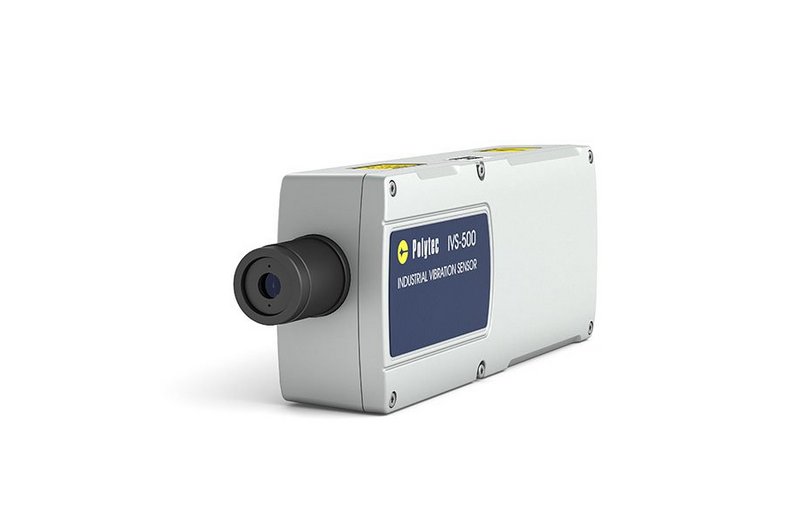

The IVS-500 Industrial Vibration Sensor is the key to fast acoustic quality inspection, structure-borne noise analysis and reliable pass-fail decisions. This laser vibration sensor measures reliably, in demanding industrial environments, without contact and therefore without wear and on virtually all surfaces. Optimize costs and yields by reducing false rejects in the production and assembly process.
New signal outputs available: Choose between displacement signal, acceleration and velocity signal and directly process either analog or optionally digital measurement data.
Highlights
- Clear and repeatable pass/fail decisions for production testing
- Reliable, non-contact quality inspection with laser precision
- Flexible working distances up to 3 m with auto focus
- Versatile covering any application up to 100 kHz
- Robust and wear-free sensor technology
Easy in-line/ at-line integration and setup
- Vibration output as velocity, displacement and acceleration data
- Signal output analog and optionally digital
Cost-efficient and flexible in-line quality inspection

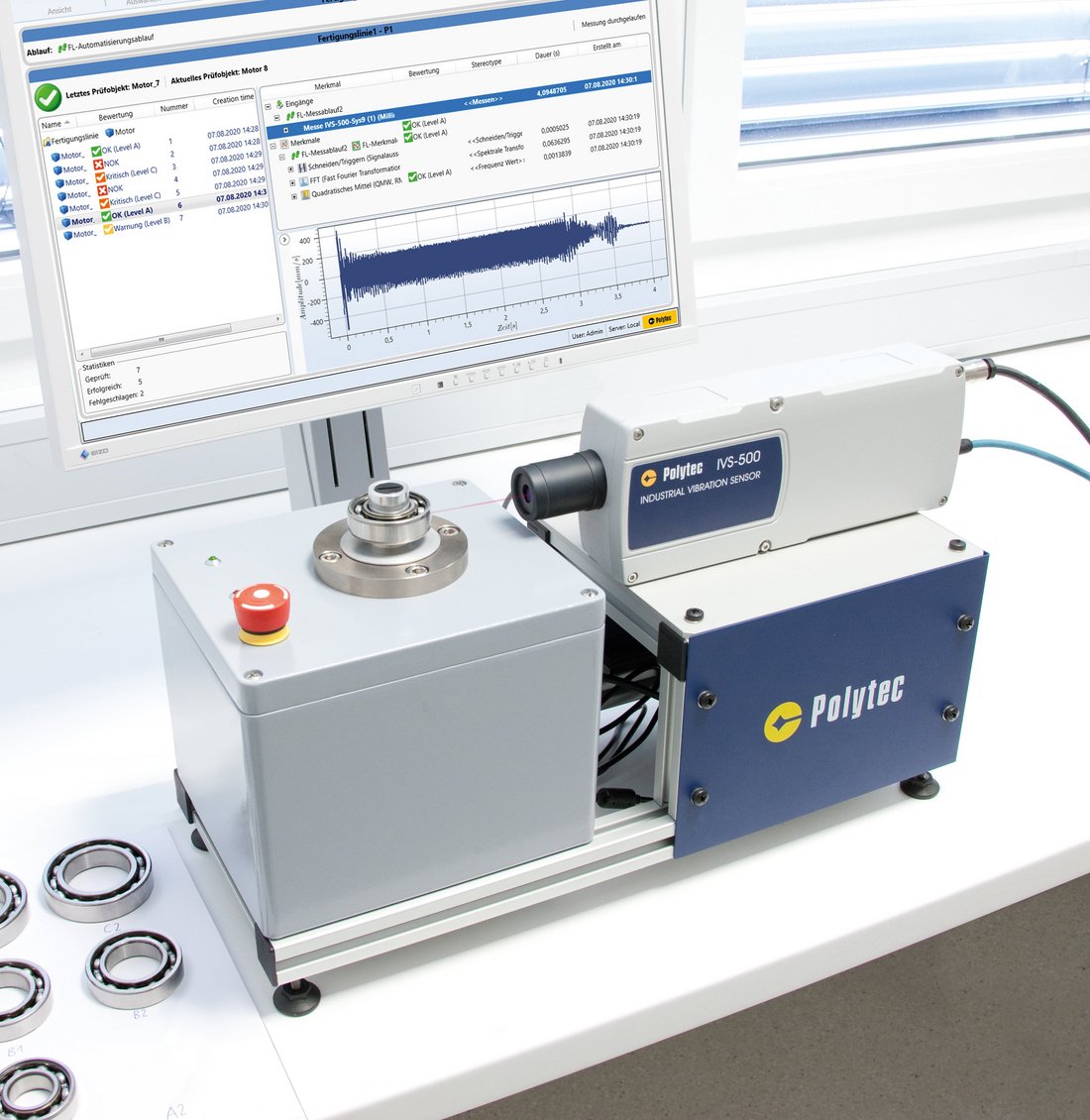

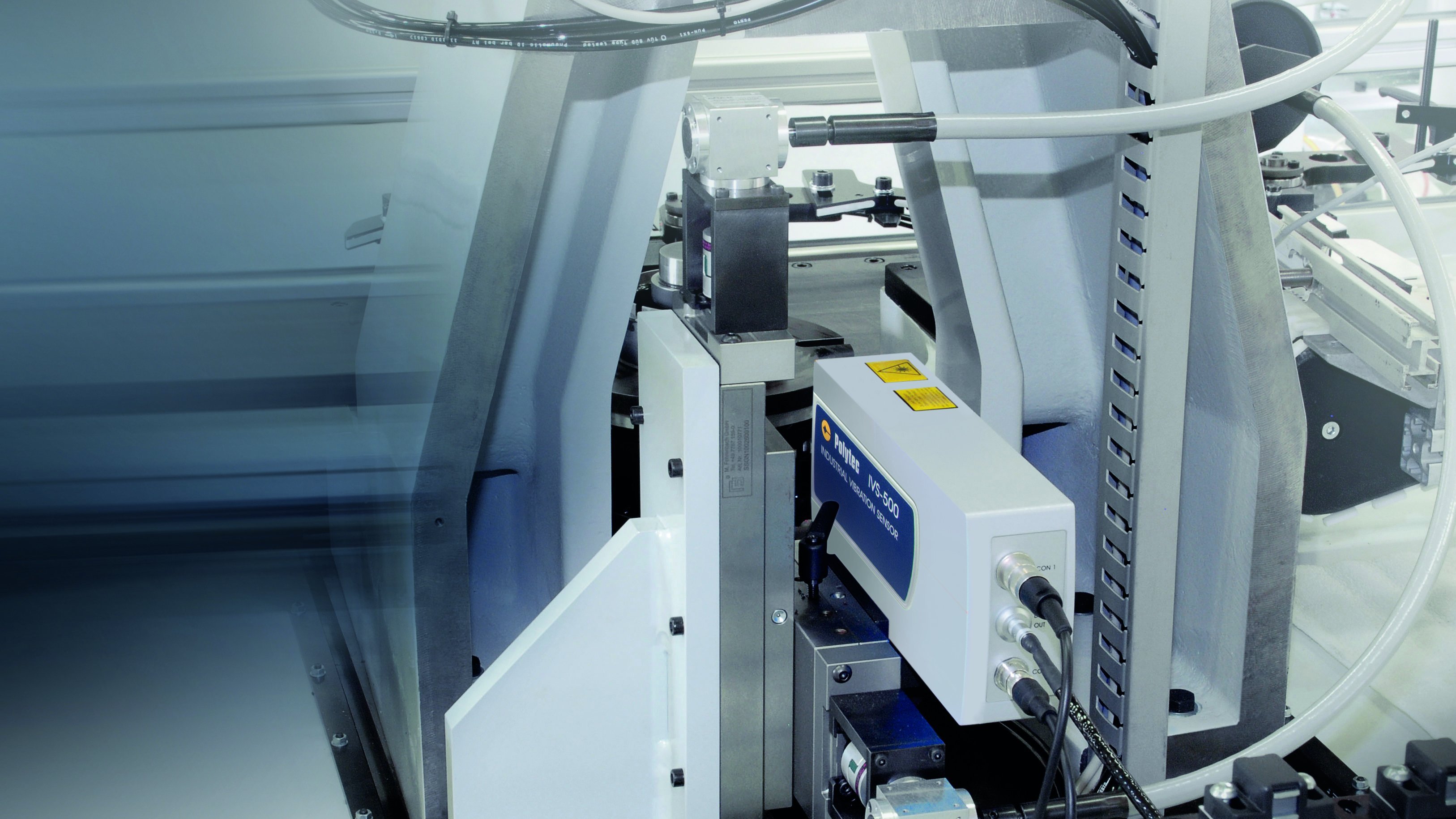

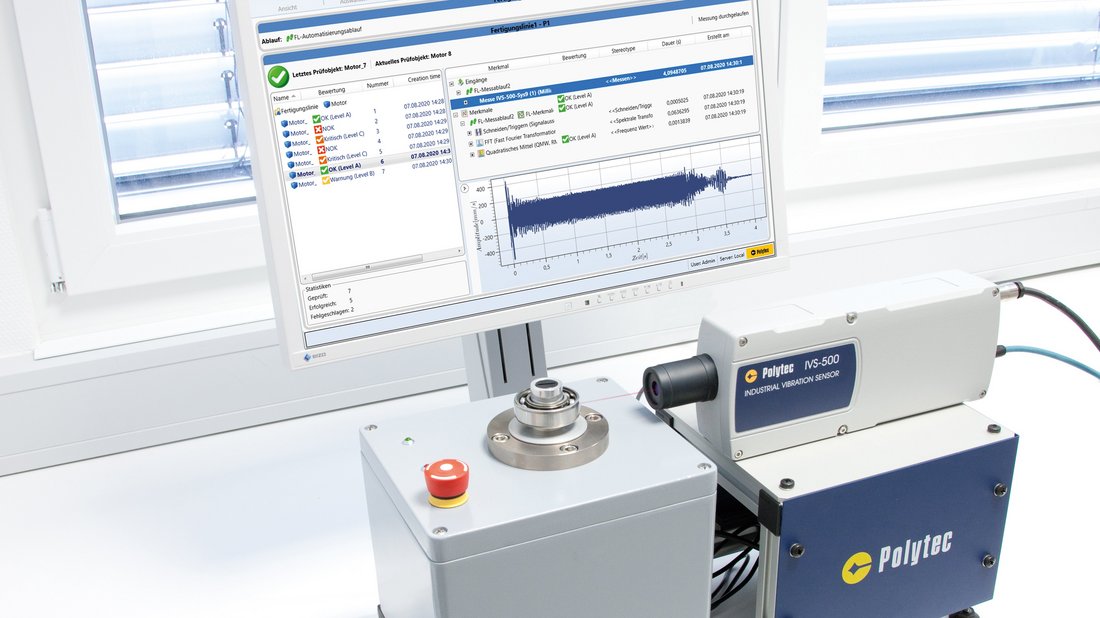

The simple setup and ruggedized sensor design of the IVS-500 enable a smooth integration into production test systems. Complemented with the software tool SonicTC QuickCheck, Polytec offers a comprehensive solution for reliable pass-fail analysis.
The IVS-500 comes as compact all-in-one with decoding electronics integrated into the sensor. Several models can be selected depending on your application – from low to ultrasonic frequencies and from low to high velocities. The optional remote and auto focus allow you to adapt to different sample geometries and guarantee the best signal-to-noise ratio for each sample tested.
All IVS-500 models feature an analog measured velocity output, which is compatible with standard data acquisition hardware and can be controlled via the serial interface from a computer or the PLC (programmable logic controller). A fully digital signal output complements the classic analog output for comfortable signal analysis. New possibilities with additional measurement ranges: Benefit from an extra fine velocity range for resolving smallest signals and choose between displacement, acceleration and velocity signal.
Acoustic quality control with laser precision
Become an expert: tips, tricks & video tutorials
The IVS-500 Industrial Vibration Sensor from Polytec is a dedicated and flexible measuring device for the vibroacoustic end-of-line test.
This exclusive section (login) provides an overview, the basics of optical acoustic testing using laser vibrometers including a technology benchmark, features tips & tricks in intuitive video tutorials for the use and handling of the IVS-500 Industrial Vibration Sensor - for starters, current users, integrators and experts.
Options and accessories
Optical Accessories
VIB-A-210 90° Deflection unit
VIB-A-220 Protective window
Protects the objective lens of the laser vibrometer from dust, oil and contamination. Tube around window for additional protection.
VIB-A-221 Protective window (flat)
Protects the objective lens of the laser vibrometer from dust, oil and contamination. Flat design for easy cleaning.
VIB-A-230 Air purge unit
For improved protection of the protective window from oil mist and dust.
VIB-A-240 Pneumatic beam shutter
Mechanically protects protective window from dust and contamination.
Tripods, Test Stands, Positioning Stages
VIB-A-P07 Pan/Tilt Adjustable Mounting Plate
For installation in industrial production lines. Allows fine adjustment of the tilt and rotation angles by ± 1.3°.
VIB-A-P09 Alignment device
For installation in industrial production lines. Allows adjustment in 2 translational directions and 2 rotations (tip/tilt).
Software, Data Acquisition
IVS-500-Prog Programming Kit
Allows reconfiguration of IVS-500 factory settings
Miscellaneous
IVS-E-500 Junction Box
Rail mounting unit, providing interfaces and power to the IVS-500.
IVS-A-510 Signal Level Display
Handheld Unit for direct connection to IVS-500 Sensor or IVS-E-500 Junction Box.
VIB-A-310 Alignment tool
Allows adjustment of laser beam perpendicular to the object surface for best signal quality.
VIB-A-320 Folding ruler
Shows visibility maxima for optimal working distance.
Related products
VibroOne
The laser Doppler vibrometer VibroOne® is the one-box solution for non-contact vibration measurement up to 3 MHz. It is specifically designed for tightly packed setups, whether in research laboratories, challenging production environments or for non-contact analysis of tiny details on microstructures or biomedical probes. The optional inline HD+ camera helps positioning the laser precisely and provides proper test documentation.
SonicTC QuickCheck
Multi-channel, PC-based testing software for fully or partially automatic process monitoring and quality control based on the vibration behaviour of manufactured products. SonicTC QuickCheck is a flexible tool for acoustics and vibration measurement in industrial quality control. The versatile fields of application reach from series production to in-process development.
VibSoft
VibSoft is a comprehensive and easy-to-use software package for vibration data acquisition and analysis. VibSoft closes the gap between raw signal acquisition and profound analysis of vibration measurement data, offering optimum performance with laser vibrometers.
