Data acquisition and analysis for laser vibrometry
VibSoft is a comprehensive and easy-to-use software package for vibration data acquisition and analysis. VibSoft closes the gap between raw signal acquisition and profound analysis of vibration measurement data, offering optimum performance with laser Doppler vibrometers.
Choose between three versions VibSoft-VL, VibSoft-20 and VibSoft-PRO: Whether your testing applications require analog or fully digital data acquisition up to 25 MHz or multi-channel DAQ that allows connecting additional inputs like complementary sensor signals. When mobility is key, benefit from a lean, portable and WLAN connected laptop solution.
Highlights
- Powerful DAQ and analysis from DC up to 25 MHz
- Fully digital or multi-channel analog
- Available as portable laptop solution
- Control all vibrometer settings remotely
- Real-time video imaging of test objects
- Comprehensive toolbox for analysis in time and frequency
- Sample excitation via internal signal generator
- Individual post-processing with Polytec signal processor
- Integrated scripting interface
Fully digital data acquisition for vibration analysis
VibSoft provides both data acquisition and profound analysis of vibration measurement results. The optional VibSoft junction box allows acquiring and analyzing analog vibrometer signals together with additional analog input signals (sensors or reference signals). Polytec measurement instruments equipped with a corresponding VibroLink interface communicate directly with VibSoft or VibSoft-VL via Ethernet or WLAN. This enables a stable transfer of measurement data and remote control of the measurement parameters in a fully digital way.
VibSoft offers digital high, low and bandpass filters. The software is open to common standards: recording time and FFT data for arbitrary voltage signals, supporting IEPE (ICP®) for third-party sensors, a scripting engine enabling automatic test routines and exporting ASCII and universal file format. Further options like real-time video imaging and the powerful signal processor (a Polytec math library for post-processing) for individual post-processing and control make VibSoft an extremely powerful tool.

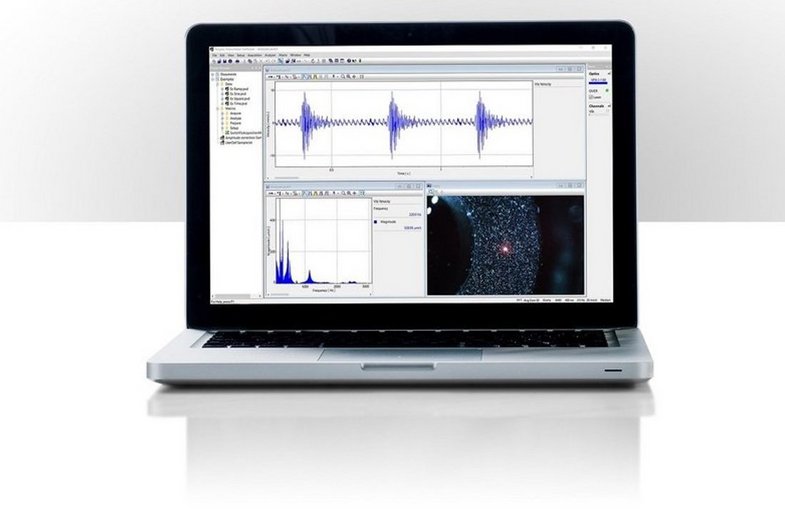

VibSoft-VL
Portable and fully digital solution with wireless capability for frequencies from DC up to 24 MHz, lean and ready to use with any laptop or PC
- Suitable even for high ultrasonic applications using sampling rates of 60 MSa/s and Gbit Ethernet
- Enables digital DAQ via Ethernet or WLAN for Polytec laser vibrometers with VibroLink (VL) interface
- Provides cleanest signals with a high digital resolution, as signals are transferred fully digitally up to 24-bit
- Optimally integrated in the operating system securing super stable digital data transfer even under high system load
VibSoft-20
Portable analog 2-channel solution for frequencies from DC up to 20 kHz, flexible and mobile for field studies
- Perfect for acoustic applications
- Compact and lightweight junction box VIB-E-220 connectable to a laptop or PC via USB
- Analyze transfer functions (FRF) by connecting a 2nd sensor
- IEPE support for 3rd party sensors
- Includes VibSoft-VL

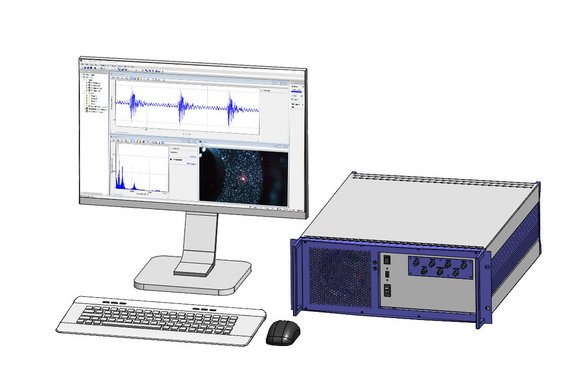

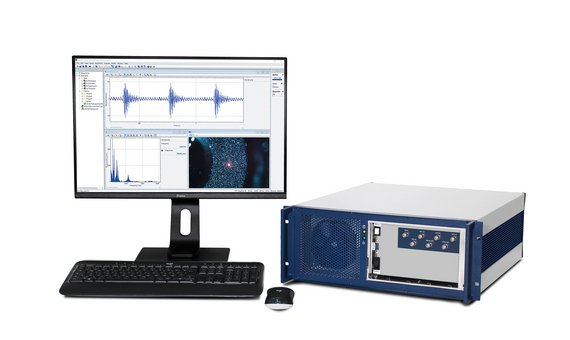

VibSoft-PRO
High performance analog 4-channel synchronous data acquisition from DC up to 25 MHz with integrated signal generator, for power users in lab and test environments
- Suitable even for high ultrasonic applications
- Integrated signal generator for excitation of the sample
- Acquire 4 input signals synchronously and analyze transfer functions (FRF) with high performance A/D-converters
- Dedicated Industrial PC with integrated BNC I/O in 19” rack housing
- Includes VibSoft-VL
Related products
VibroOne
The laser Doppler vibrometer VibroOne® is the one-box solution for non-contact vibration measurement up to 3 MHz. It is specifically designed for tightly packed setups, whether in research laboratories, challenging production environments or for non-contact analysis of tiny details on microstructures or biomedical probes. The optional inline HD+ camera helps positioning the laser precisely and provides proper test documentation.

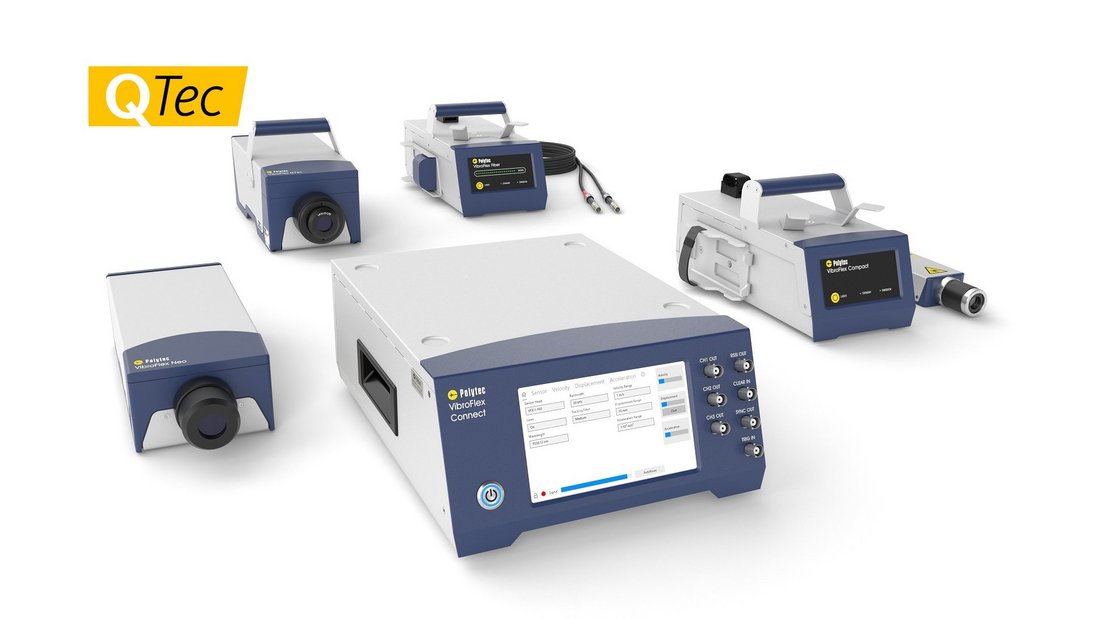

VibroFlex
With the modular laser vibrometer VibroFlex, Polytec presents the superior flexibility in optical vibration measurement with a modular sensor solution up to 24 MHz that adapts to your needs: Add microscope objectives for observing tiny structures or measure large samples like machinery or motors from a safe distance. Discover acoustics and vibration phenomena in research and product development for a faster time-to-market or use it for reliable in-line inspections. Learn about how the patented multi-path interferometry QTec® provides an always stable signal level, 20 dB better SNR for faster and clearer results without post-processing.
VibroGo
VibroGo® is the truly portable, battery powered digital laser vibrometer for field studies and quick and easy condition monitoring of machines and facilities on the go. It allows the non-contact measurement of vibrational displacement, velocity and acceleration up to 320 kHz and from safe distances up to 30 m. Integrated on-board data recording, live monitoring and quick analysis of measurement data make VibroGo® more autonomous than ever before.

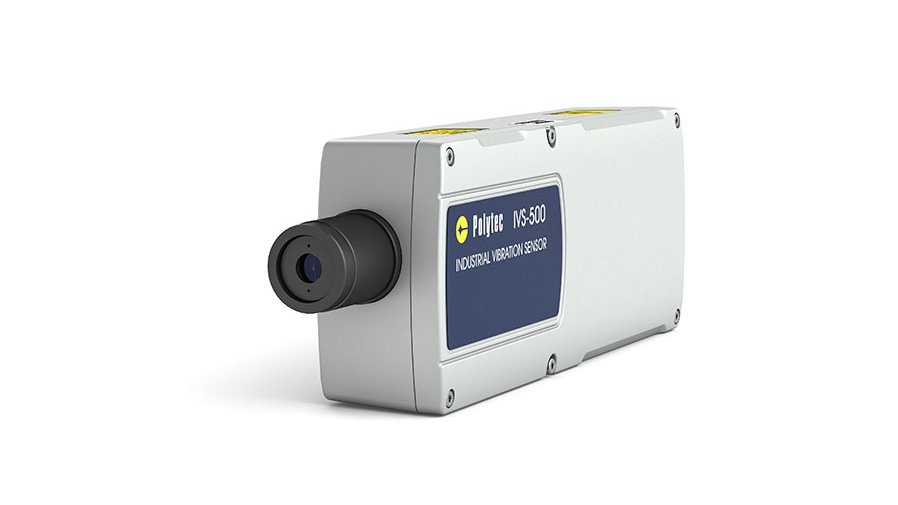

IVS-500 Industrial Vibration Sensor
The IVS-500 Industrial Vibration Sensor is key to fast and non-contact vibro-acoustic quality inspection, structure-borne noise analysis and reliable pass-fail decisions. Its robust and compact design enables a smooth integration into process control systems for in-line and production testing up to 100 kHz, whenever requiring short cycle times like for end-of-line tests. The sensor is wear-free and avoids expensive servo-mechanisms or noise protection cabins.

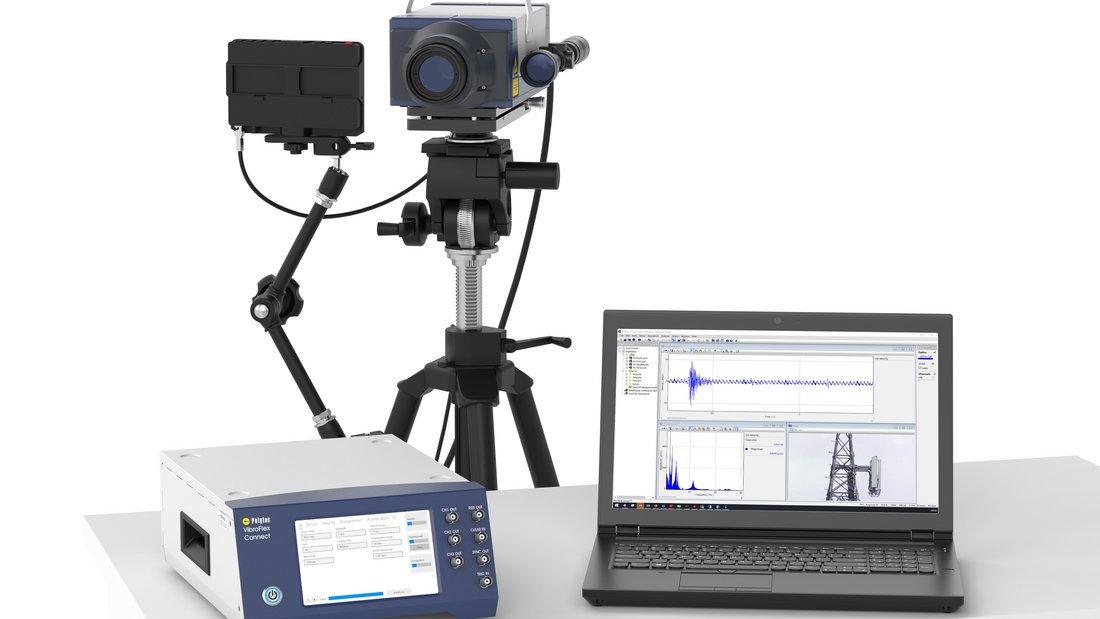

VibroFlex Range
